Likuid Ceramic MBR Rental

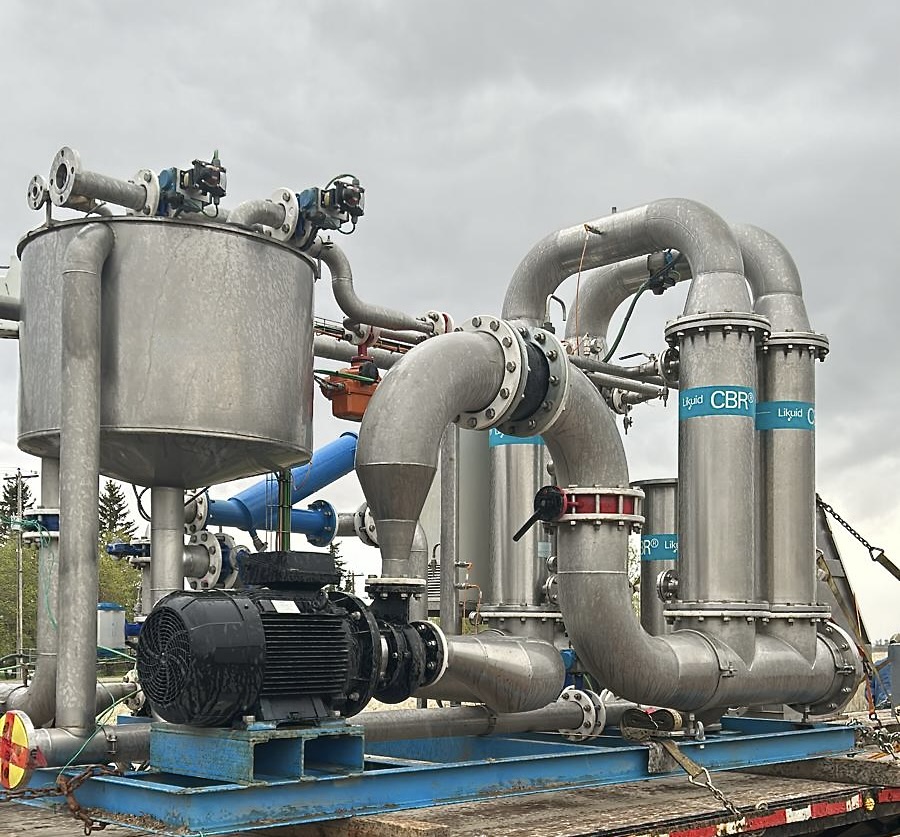

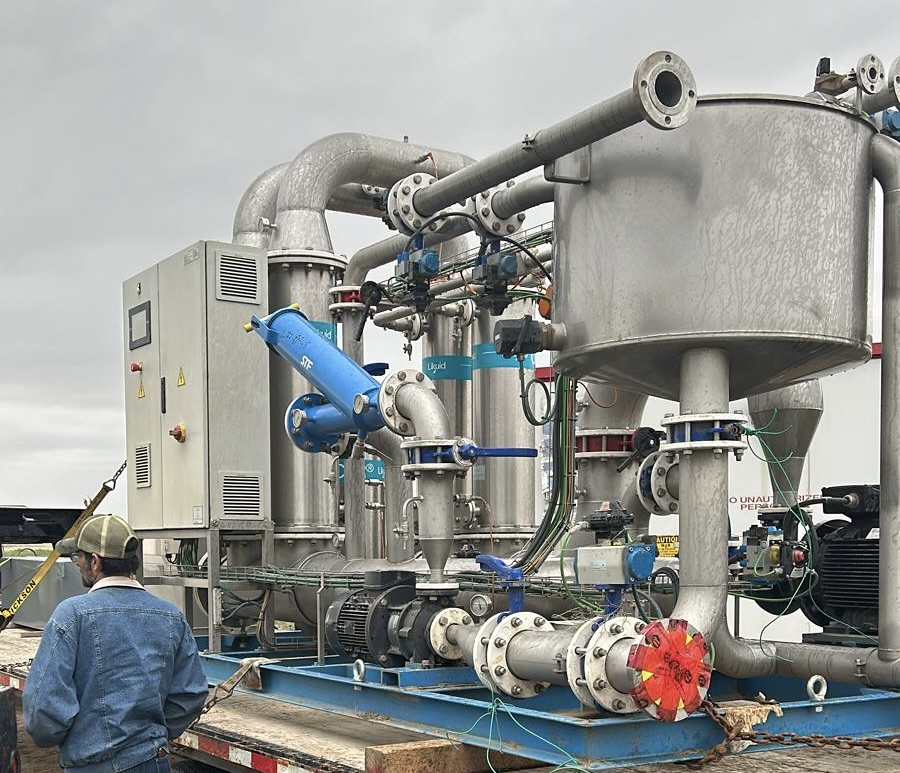

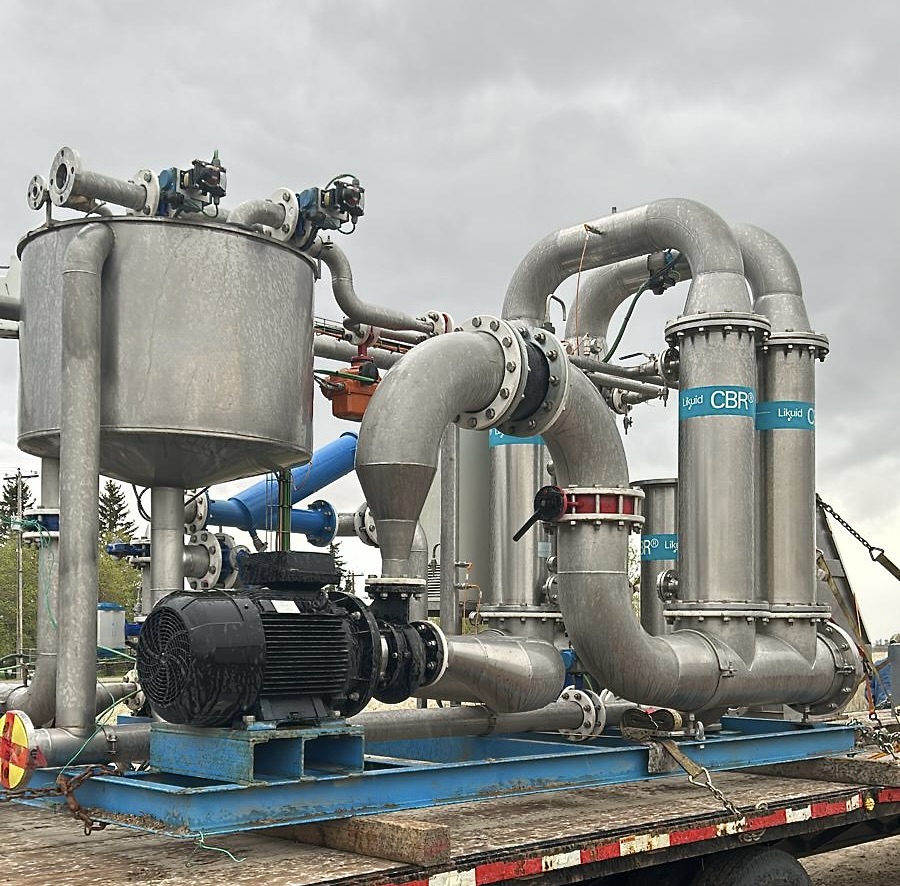

Herein is a Likuid Nanoteck Sidestream MBR rental. Widely known as cross-flow Membrane Bio Reactor (CFMBR), it is used for final polishing or for the treatment of oily wastewater. The unit is from one of our customers ready for rental. Please note that the price herein is not the final price. Speak with us about your requirements to obtain a final price.

Pump the mixed-liquor (liquid-solids mixture) into the system and it will be filtrated by cross-flow filtration through the membrane. The permeate is discharged and the retentate (excess flow) is circulated back to the aeration or anaerobic tank depending on your current design.

The system uses Likuid tubular Ceramic Membranes and can use different ceramic material compositions such as silicon carbide (SiC),alumina, titanium, and zirconium oxides, of different pore size distributions in the range of UF filtration.

This high yield membrane solutions can be used to treat produced water in the Oil & Gas market and industrial wastewater for removing suspended solids as well as oil droplets and oil emulsions. Ask questions at 12508992321.

Technical Characteristics:

Material: Stainless steel
Morphology: Tubular
pH Range: 0 - 14
Maximum pressure: 10 bar
Temperature range: 5 - 100ºC
Membrane Element: Ultrafiltration
Design flow: 100 m³/day or 26417 USG/day and can be scaled to 120 m³/day

Power requirements: 42.9KW

What you can treat

 - temperature sensitive liquids or high temperature liquids
delicate solids

• reactive components
• oily water
  - fines below 0.5 microns,
  - aggressive solvents
  - acids
  - hydrocarbons

Benefits

High yield
Manufactured by a pioneer in the field of ceramic membrane filtration
Fully automated with pumps and chemical tank
OMRON N series HMI
Multiple membrane
Can handle corrosive fluids and high temperatures
Oil water separation
Pre RO treatment
High strength wastewater treatment
Can come with a complete aerobic wastewater treatment plant and solids pretreatment if desired. No need for high Capex when you can get a "Ceramic MBR Rental" short or longterm.
