Cross-flow Ceramic Membrane Filtration MBR Wastewater Treatment Plant Rental

This Sludgeandwater LLC "Ceramic Membrane Bioreactor (MBR)" couples an activated sludge plant with an MBR filtration unit; in this case a sidestream or Cross-flow Ceramic Membrane Package Wastewater Treatment Plant (WWTP) rental for the treatment of domestic and industrial wastewater where reuse is required.

Plant can be tuned to treat simple wastewater or complex wastewater high in O&G, TSS, organics, bacteria, viruses and other high strength waters where ceramic membrane filtration is advantageous or water reuse is desired.

Please note that the price herein is NOT the final rental price. Our package wastewater treatment plants can be deployed to treat wastewater produced at your base camp, temporary facilities, factory or work camp. Can also be used to help with capacity issues at your wastewater treatment plant. We can operate it or rent to you on a contract basis. Any questions please message or call 12508992321

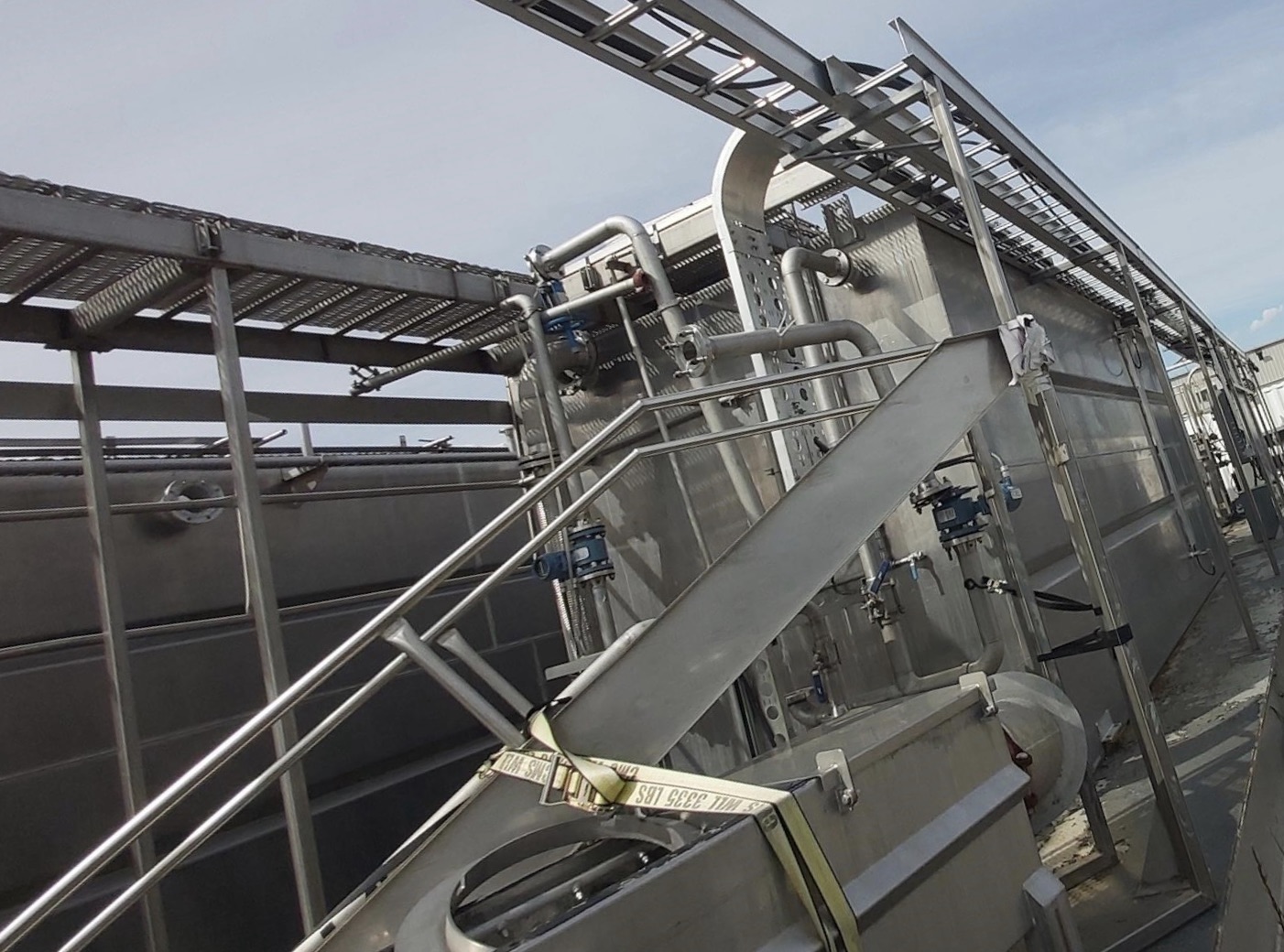

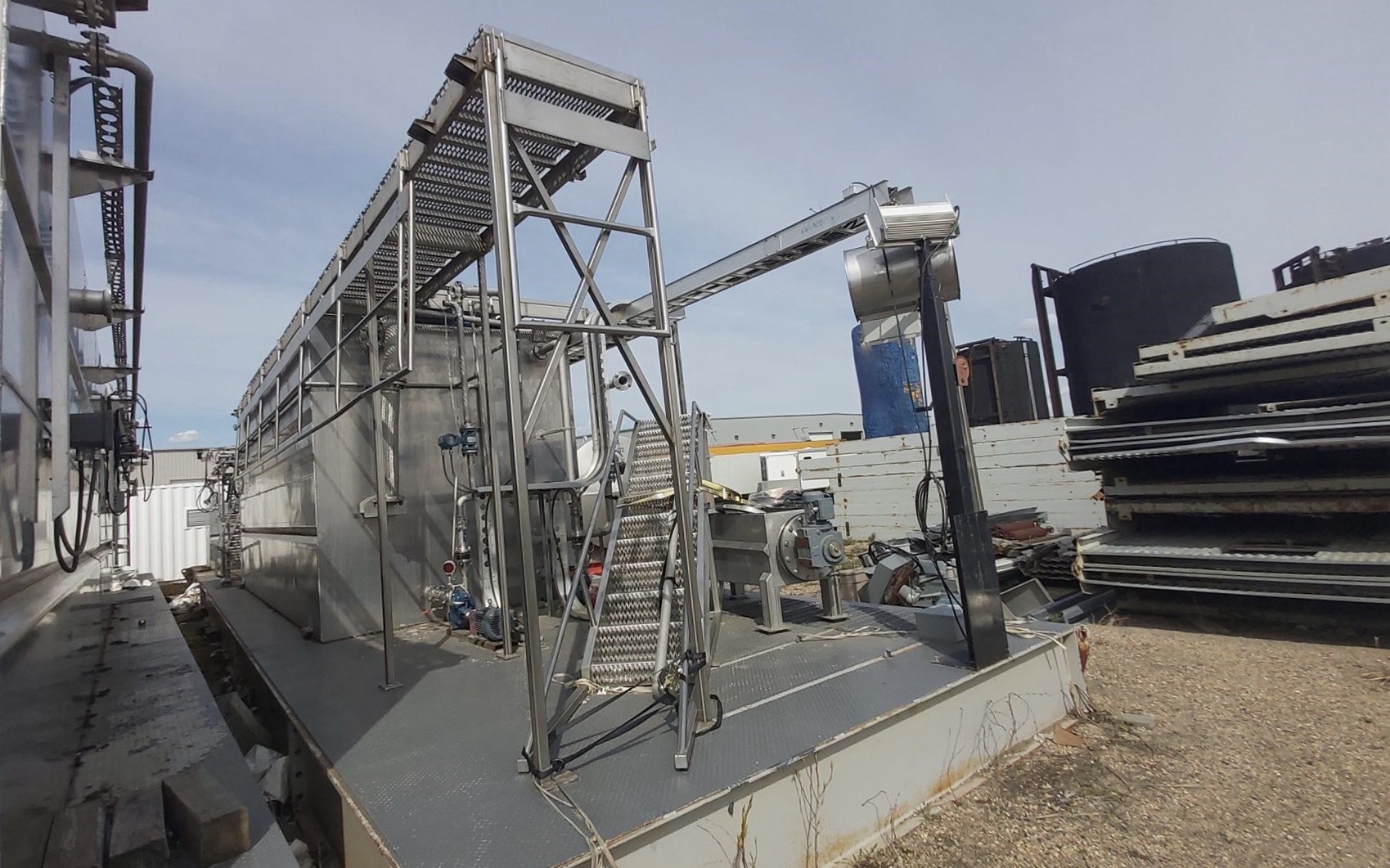

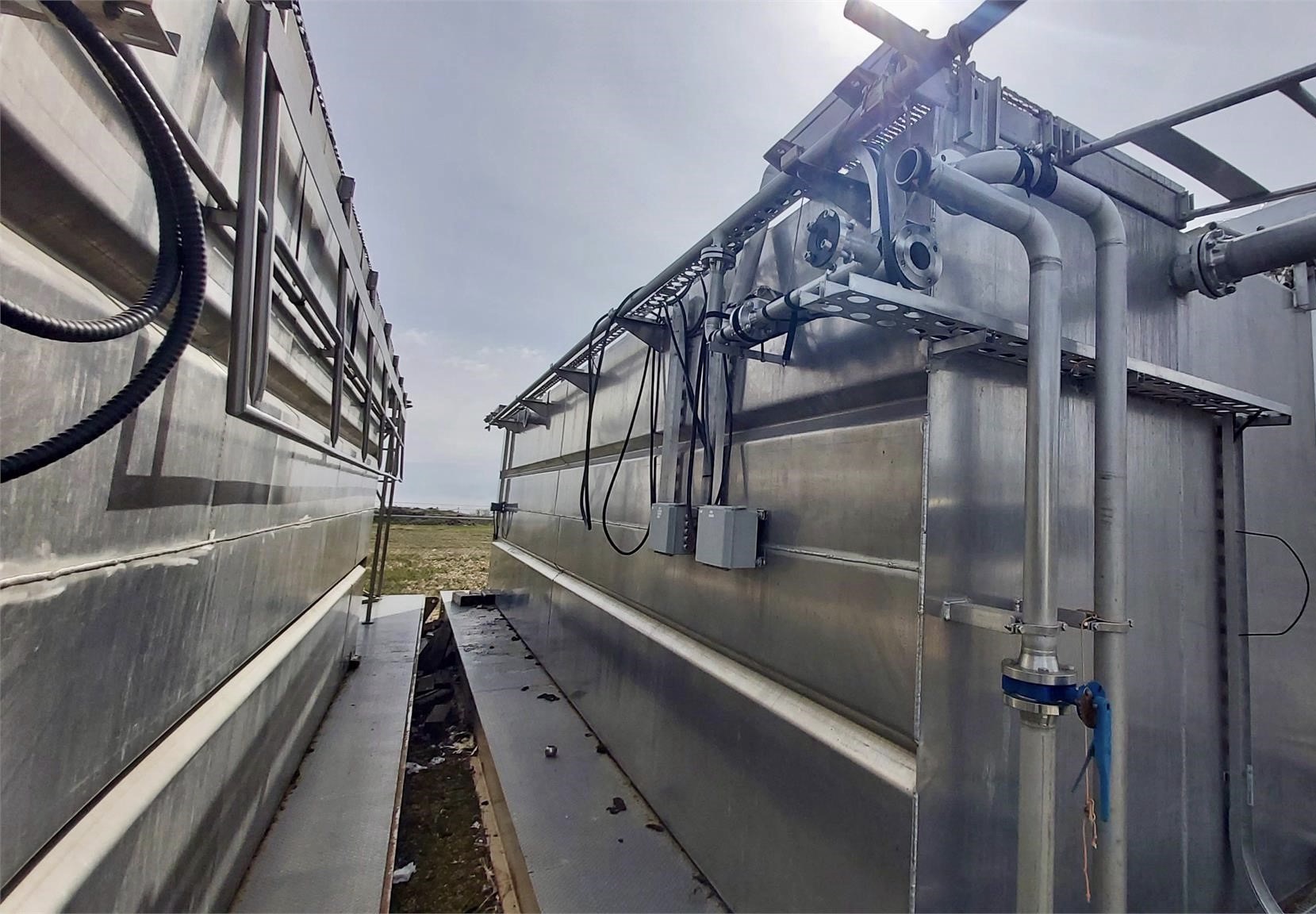

Advertised plant example:

Manufacturer: KAESER/Likuid/Other

 Details: Stainless steel, Aluminium, Carbon Steel build and piping

o Design Capacity (Activated Sludge to Ceramic Multitube MBR

 Influent Feed Capacity: 100 -120  m3/day

Power:

600v / 3 phase / 250 amp or 480V

power can be adapted to your needs

MCP:

- Mechanical hand / off / auto switches

- 2 HMI (Allen Bradley Panelview 1500 and Omron NA5-12W101B-V1 HMI Terminal Touch Screen Panel 12")

System:

Mechanical Screening SHINMAYWA 32SB
EQ
Anoxic Tank

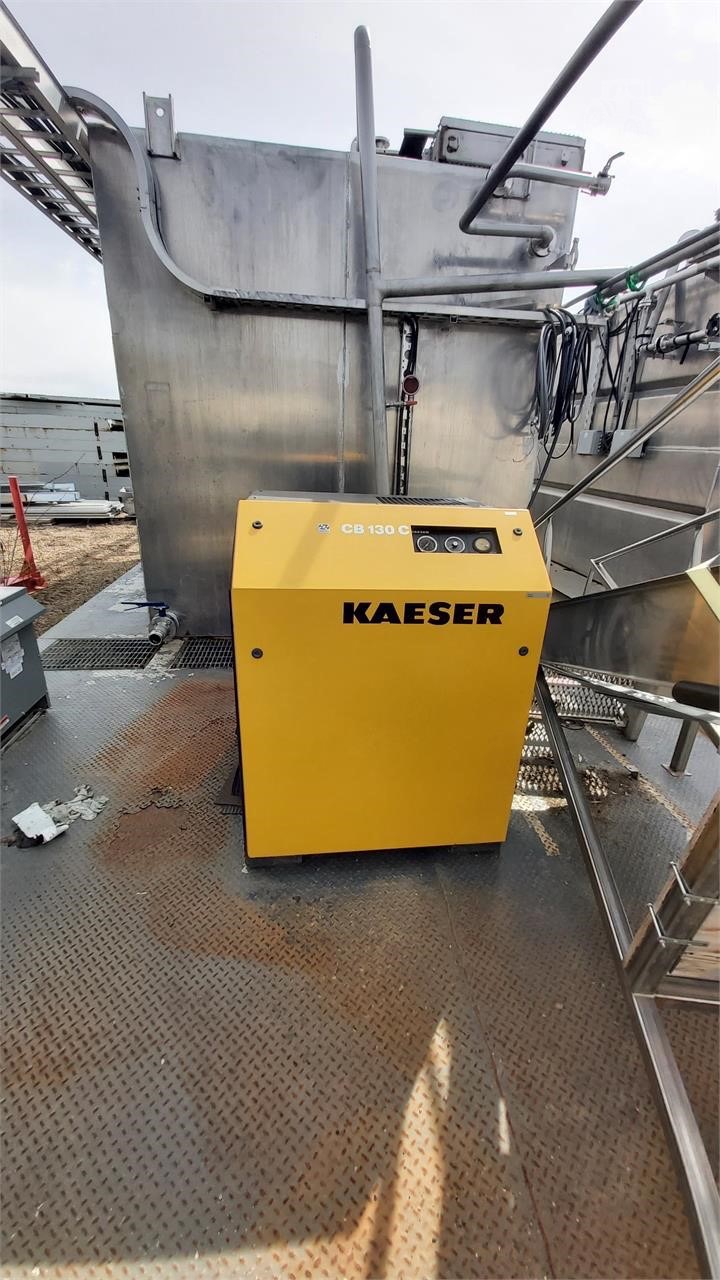

Aeration Tank (2 KAESER CB130C air blowers)

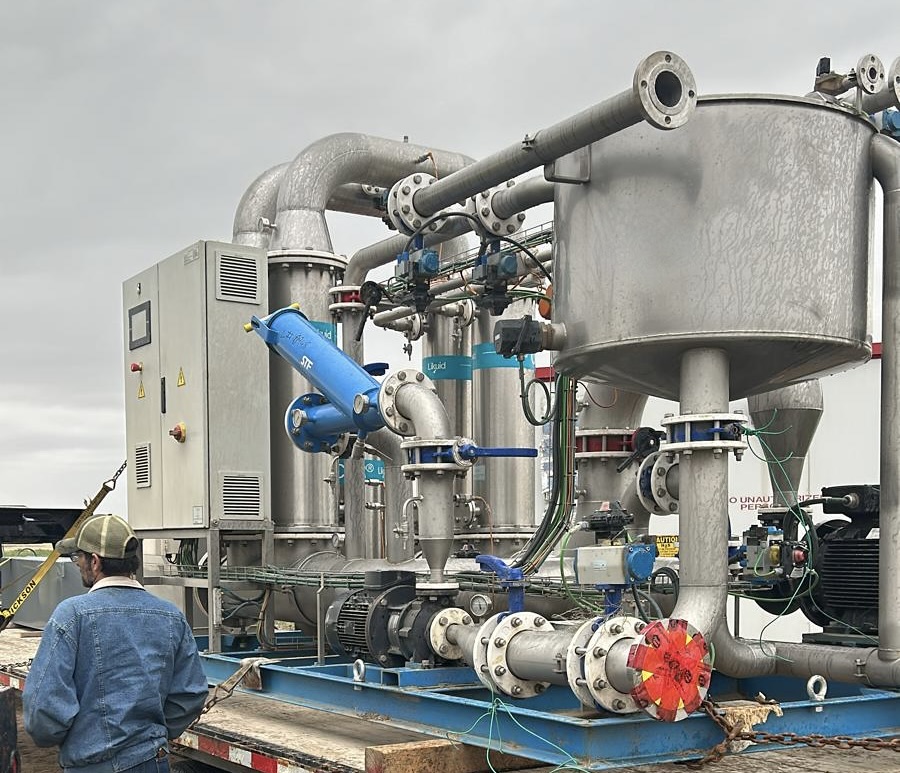

Likuid Nanotek CBR Ceramic Membrane Filtration (L61 Modules)
Chemical Tanks (Backwash, CIP)
Hallett 30 UV disinfection
Skidded unit (2 skids) dimensions – 65’ x 14’ x 11’ each

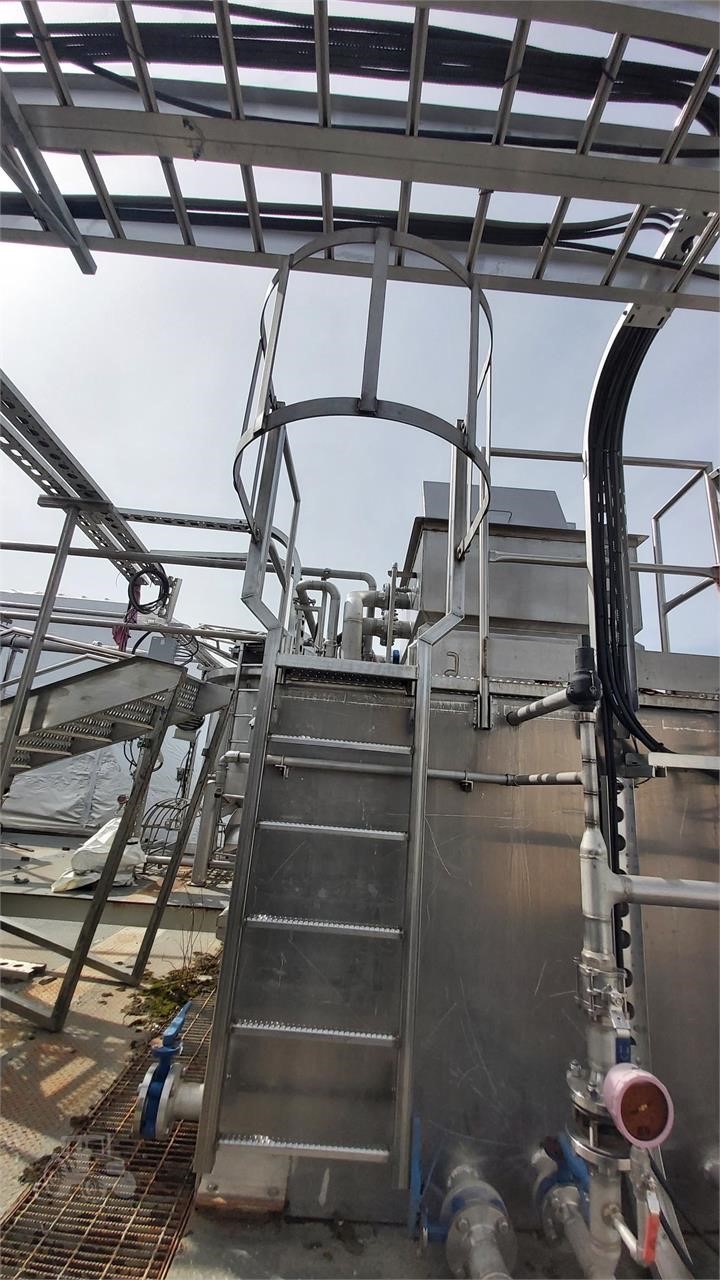

Safety Rails, Catwalk, Fall Protection
Heating
Lighting
Pre-engineered


Things to know

- Hallett 30 UV system- The Hallett 30 1” drinking water system is NSF/ANSI Standard 55 Class A certified. For the Hallett units, the EPA Establishment number is 075213-CAN-001.

- Ceramic MBRs mean you never have to worry about membrane issues as is common with polymeric membranes that are prone to regular fouling and breaking.

- We always try to offer accurate pore size distributions in the range of MICRO, ULTRA and NANO filtration depending on requirements

- Limited operator engagement.

Typical applications of this plant:

Plant bypass
Oil and Gas
Food industry wastewater treatment
Temporary or long-term wastewater treatment requirements
Remote work camps
Pilot plant operations on various water streams
System expansions
Disaster mitigation
Temporary bridge to a permanent solution
Treatment for seasonal peaks or scheduled maintenance
Benefits Over Standard Wastewater Treatment Methods:

Robustness: Likuid Nanotek’s ceramic membranes are robust and durable, making them suitable for challenging industrial environments.
High-Quality Effluent: Our plant technology consistently produces high-quality treated water, meeting stringent standards.
Reduced Footprint: Small footprint, making the plant ideal for space-constrained installations.
Low Maintenance: Minimal operation and maintenance requirements lead to cost savings and operational efficiency.
Reuse Potential: The treated water can often be reused for other purposes, reducing overall water consumption.


Conversions & Add ons(Either or)

Housing
Lamella clarification for solids pretreatment
Influent holding tanks (21,000 Gallon)

Dewatering Skid skid (Filter Press)

Stainless steel clarifier incase ceramic membranes are not needed


 Our plants are located in Alberta Canada and Wetland California and are available for rent in Canada, United States, Central and South America. We can also build you a similar plant. We also have other smaller wastewater treatment plants for rent.
