Portable Amiad SAF-1500 Skid Mounted Process Water Filter

8c79ad4d-811b-4f8f-b05b-f12f8dce3985
8c79ad4d-811b-4f8f-b05b-f12f8dce39852fa60c59-9b67-41d3-863f-71aa4b979c4e9774fafd-90b4-4850-a6fd-96c176c12bc8f691efd1-7961-459b-9573-29ec3ee2f58494621f2f-96e8-4ade-8990-2e39767dd78a3dfcf8f7-76ec-4315-b417-793a1a769f0c_1_201_a51773f84-a39d-46a0-8a93-efe0ed06c8a4_1_201_a
Request Rental Price   Complete Automatic Self-cleaning Water filteration system composed of an Amiad SAF-1500 filter system and a Seepex pump BN 17-12  for, multiple high end rosemount meter trasmitters and rosemount Pressure transducers. The last project it worked on was "Irrigation process filt ...Read more
Free


8 items in stock
  • Description
  • Specifications

Request Rental Price



Complete Automatic Self-cleaning Water filteration system composed of an Amiad SAF-1500 filter system and a Seepex pump BN 17-12  for, multiple high end rosemount meter trasmitters and rosemount Pressure transducers. The last project it worked on was "Irrigation process filter ". You will need to install a power cable.


This self-cleaning screen filter unit is used to remove suspended solids from a water source. It can be used for industrial, municipal or irrigation purposes.

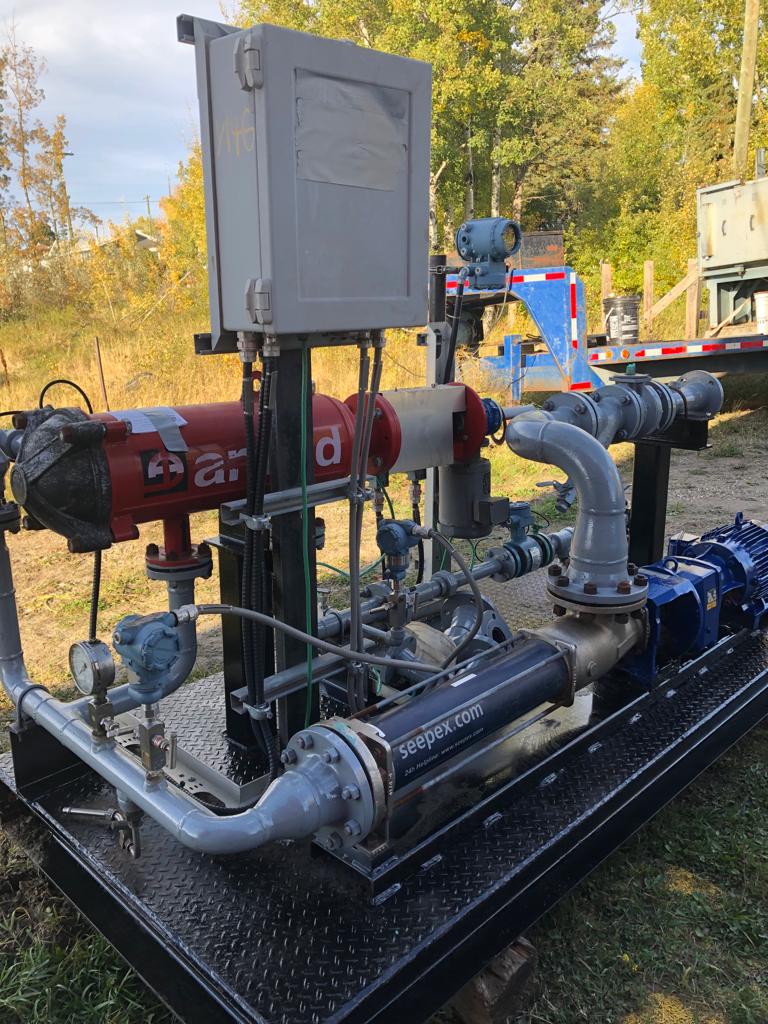

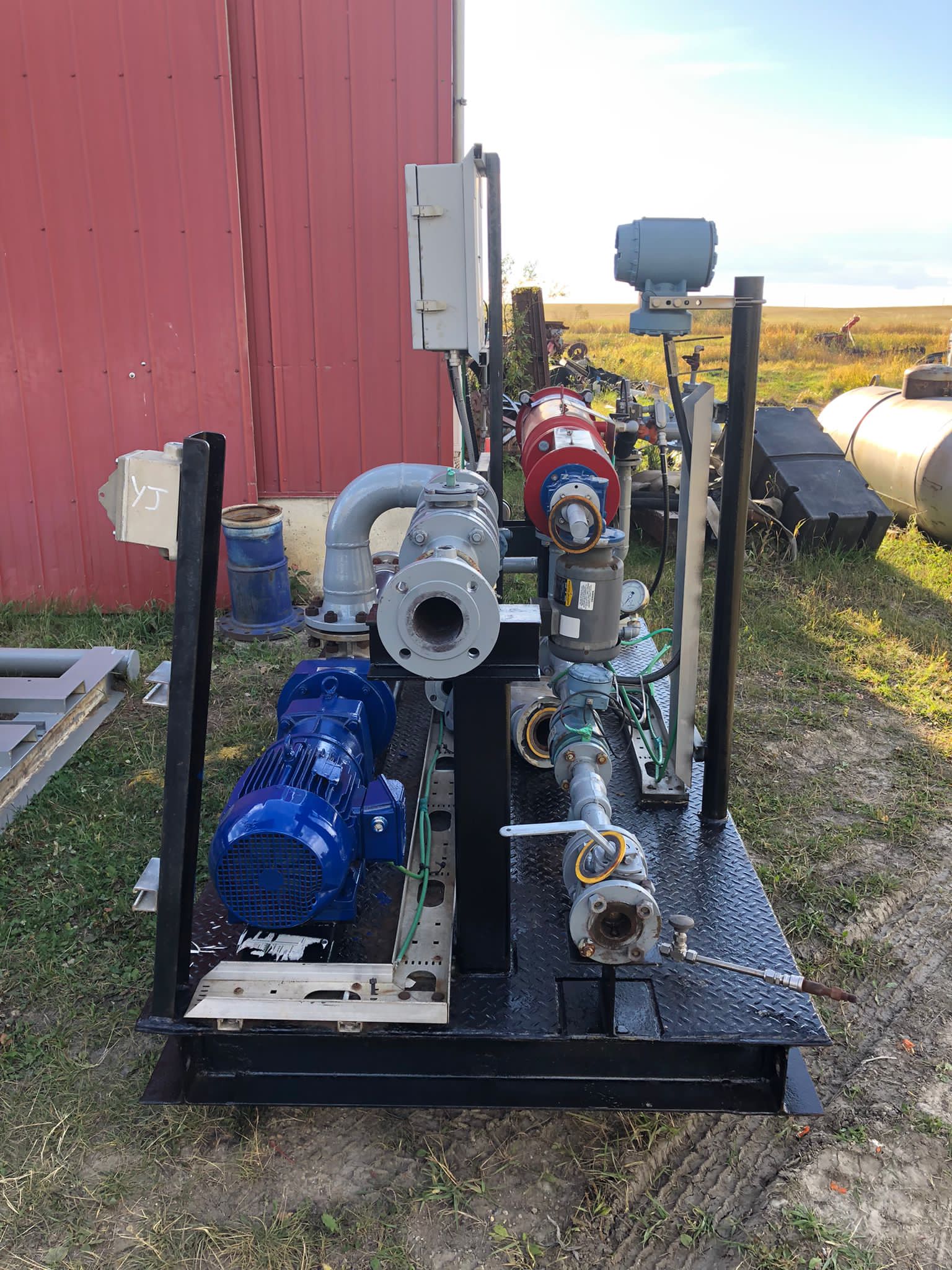

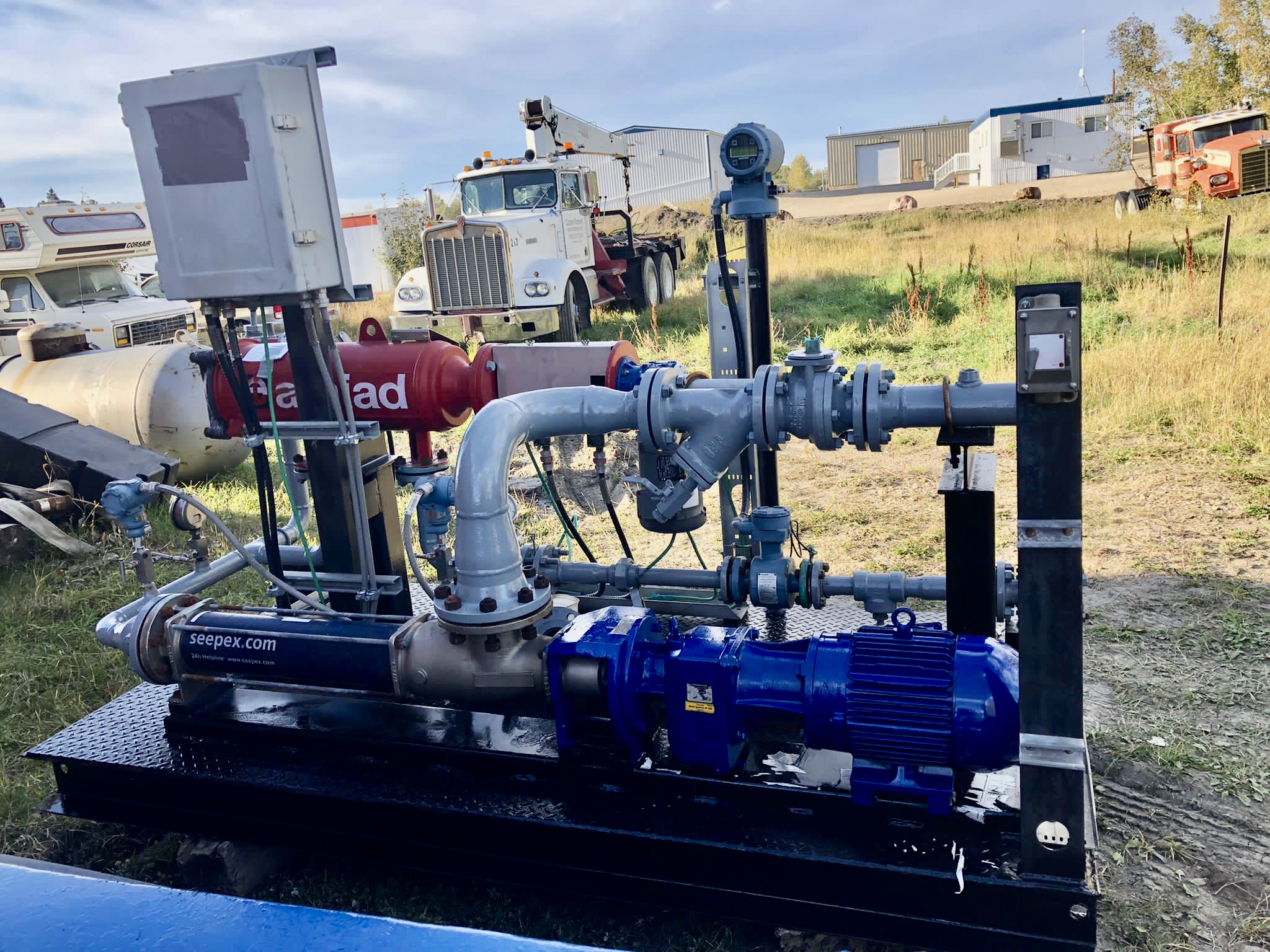

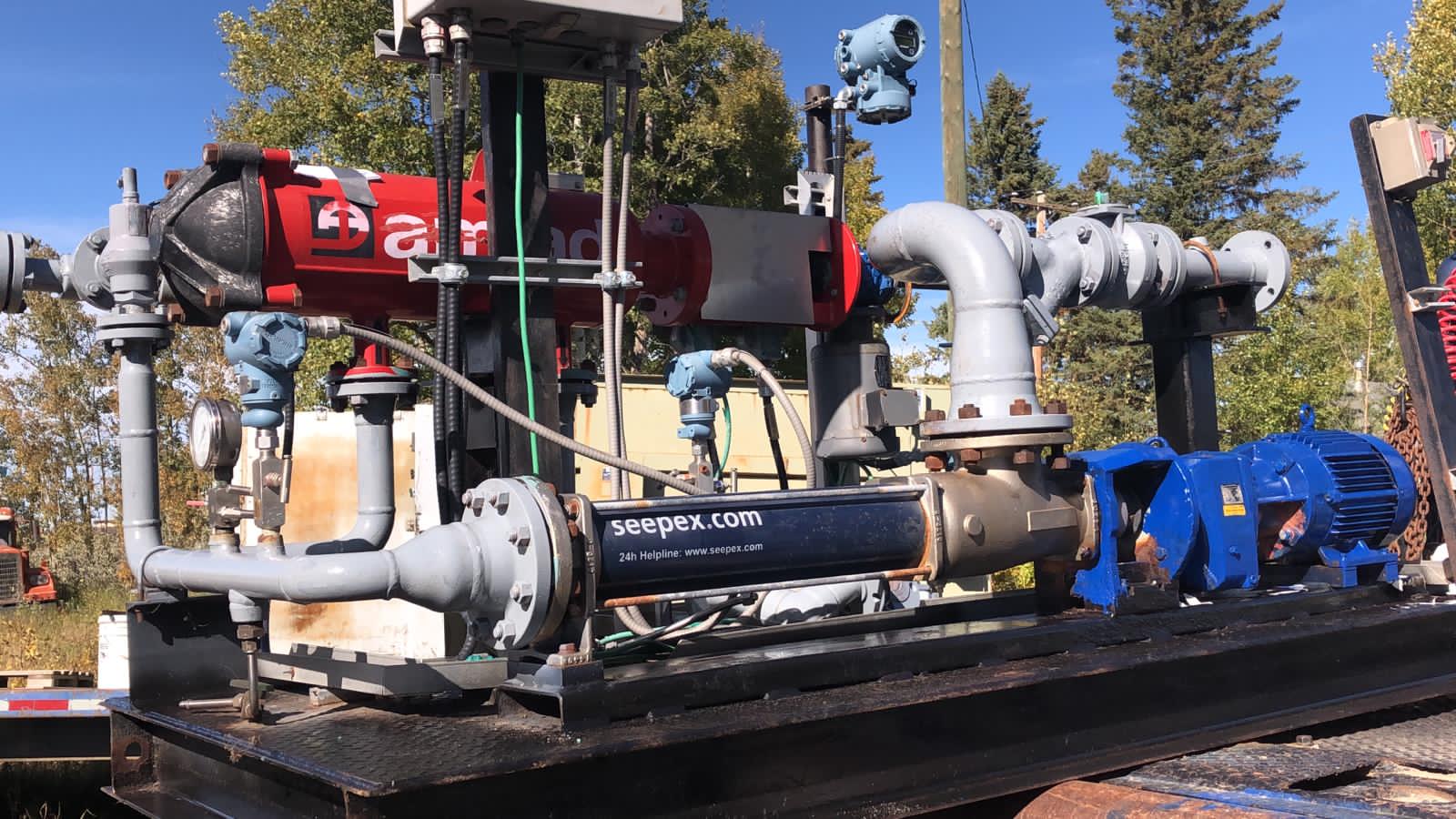

Unit is as seen in the photo. The system is electric. You can use the system for wastewater filtering, mineral separation, and any processes that require 500-10 micron filtration degree. We are a dredging and wastewater company. We sell only items we use and have a good understanding of how they work so buy with confidence. This unit was designed by Amiad and Allied Circuits. The electrical drawings to this unit are available.

Inletsize: 3 inch
Outletsize: 2 inch
Cakeoutlet: 2 inch
Metering: Rosemount 8732E field mount Magnetic Flow Meter
Flowtube sensors: Rosemount 8700 series flanged flow tube


Applications:



This type of fully automatic self-cleaning screen filter has been used for in

applications wherever suspended solids need to be removed from a pressurized water

stream. They are used to remove sand, silt and algae from raw water taken from lakes, ponds, rivers and canals. Such filters provide pretreatment before membrane filtration systems for potable water supply. Other installations include pretreatment for reverse

osmosis and other desalination systems. Many municipal and industrial wastewater treatment plants use these filters to prepare secondary effluent for reuse in cooling,

irrigation and aquifer recharge systems. Applications in steel mills filtering grimy, oily cooling and descaling water are common as are those in the automotive and plastics industries. Cement plants and mining operations use this type of filter for removing solids from tailings. They are found on deep-sea oil platforms for filtering flood water and on ships before portable desalination systems.



The automatic self-cleaning filter - suitable for a lot of applications.


features:
  • Large filter area, reliable operating mechanism and simple construction make the SAF filter the ideal solution for filtration of poor quality water to very fine filtration degrees
  • Automatic flushing according to pressure differential and/or according to time
  • No interruption of downstream flow during flushing
  • Robust and reliable Self-Cleaning mechanism even on marginal operation conditions.
  • Minimal volume of reject water allows excellent operation in continuous flush mode

Applications

  • Wastewater
  • Heat Exchanger Protection
  • Cooling Towers
  • Boiler Feed Water
  • Machining Fluids
  • Deep Well injection
  • Descaling Systems
  • Irrigation
  • Paper Coating
  • Refining
