keep your workplace clean and sanitary. Our package wastewater treatment plants can be deployed to treat wastewater produced at your base camp, temporary facilities, factory or work camp. Can also be used to help with capacity issues at your westwater treatment plant. We can operate it or rent to you on a contract basis. Additional skids can be added for advanced nutrient treatment.
Herein is Sludgeandwater Inc Package Extended Aeration Wastewater Treatment Plant (WWTP) for the treatment wastewater. The plant can be configured to use Integrated Fixed Film Activated Sludge IFAS or Moving Bed Bioreactor MBBR, an upgrade for nitrogen or full BNR removal. You can also suggest adaptions we can make to get the plant to work for your needs.

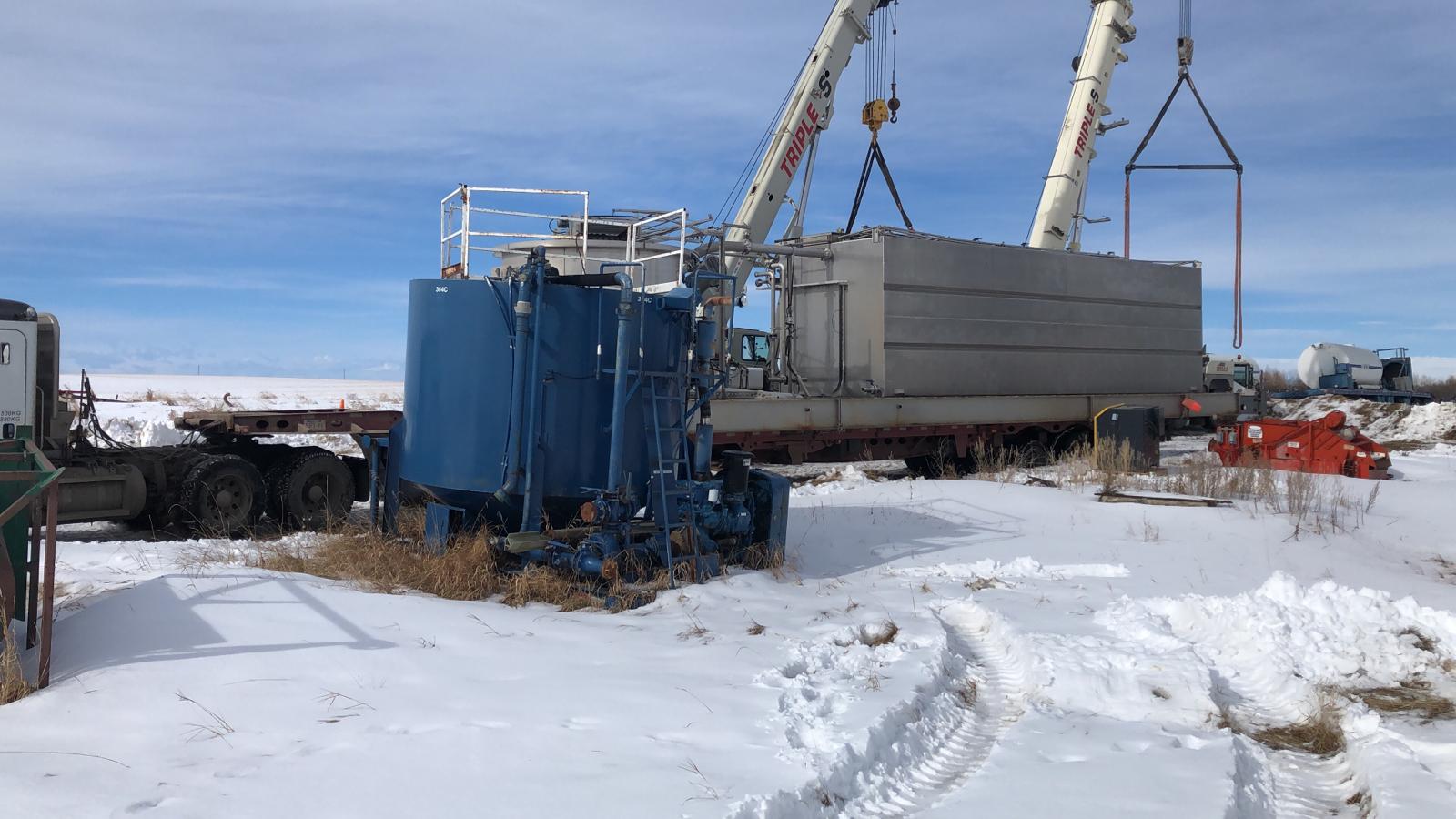

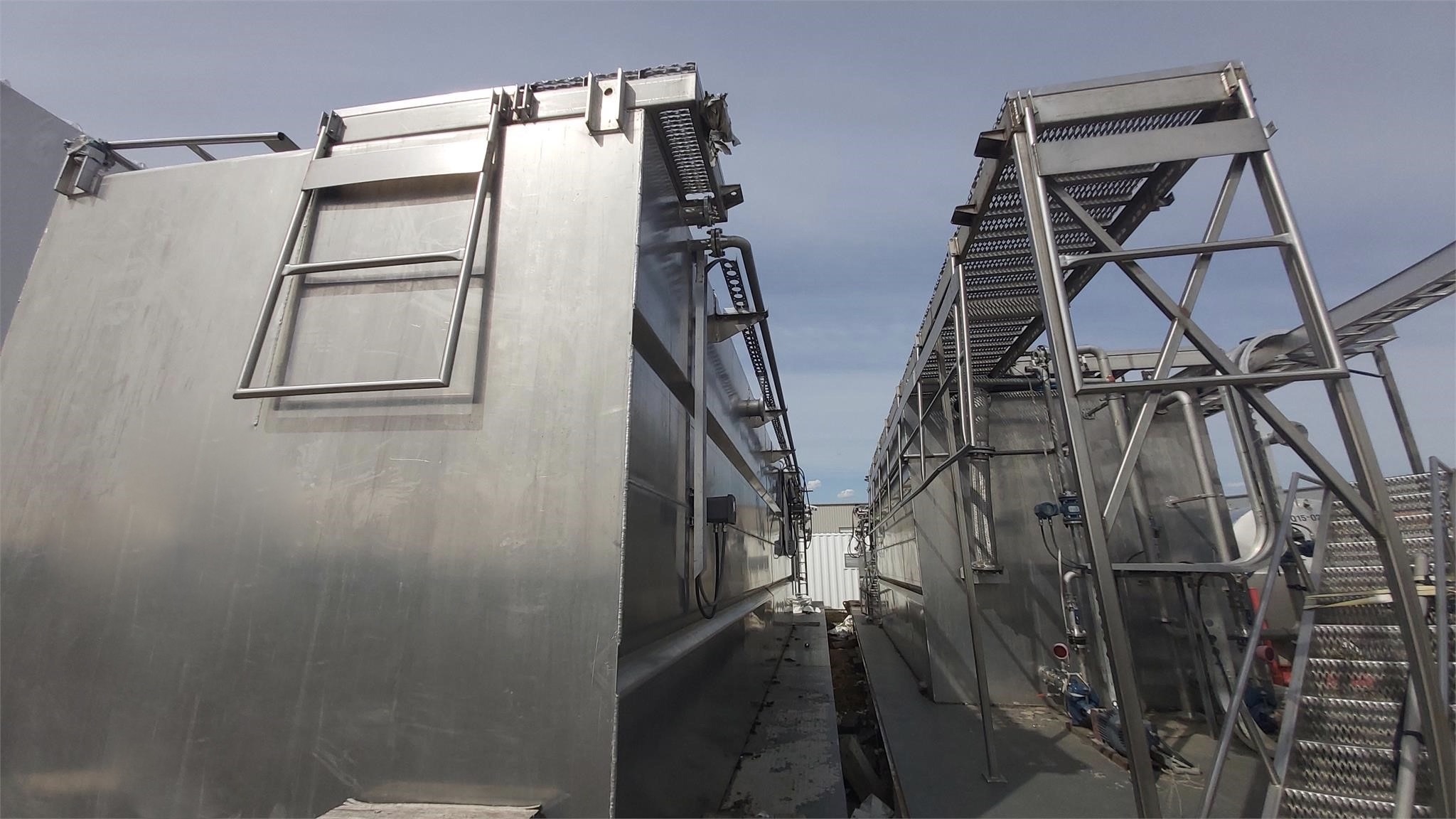

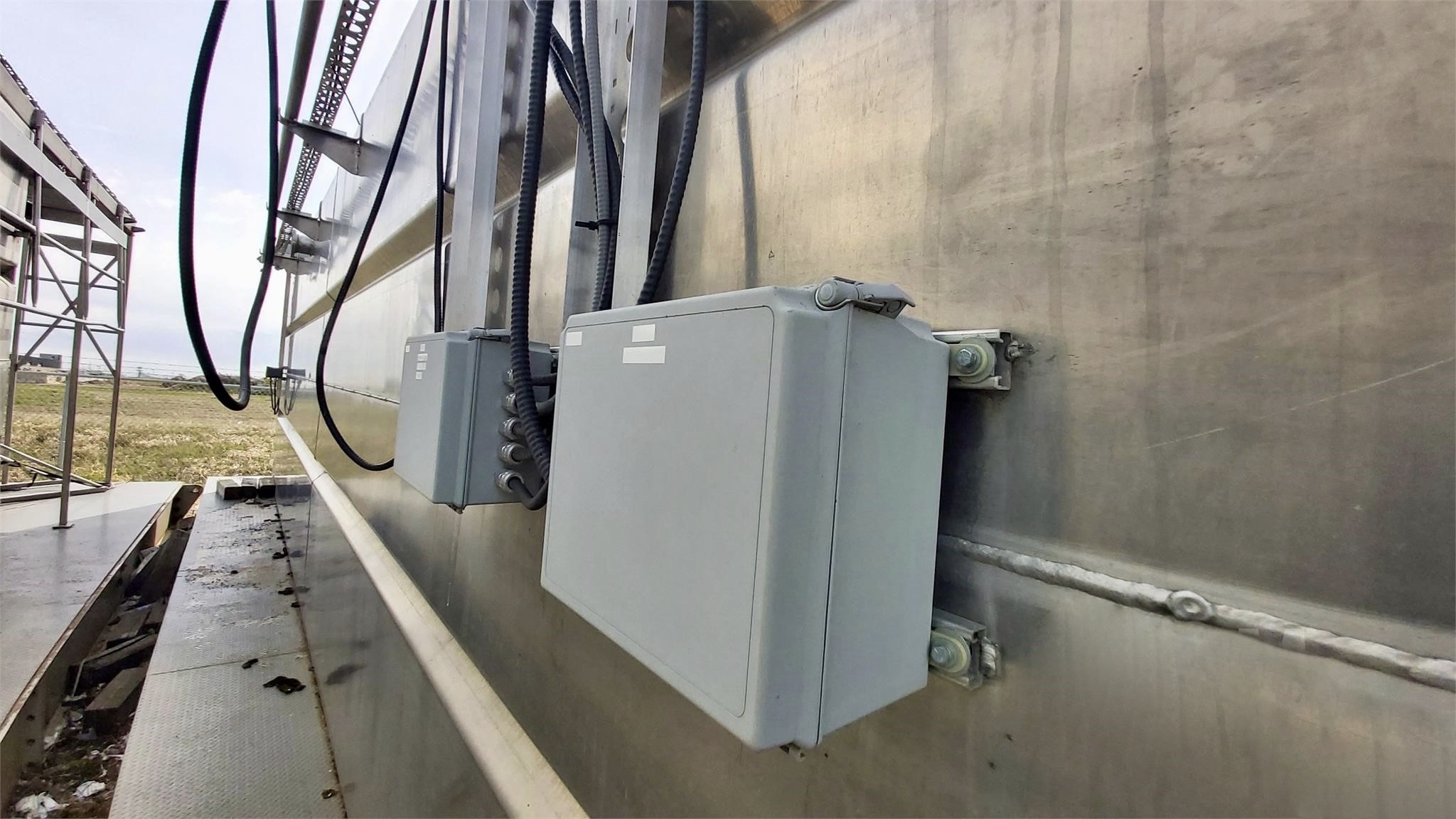

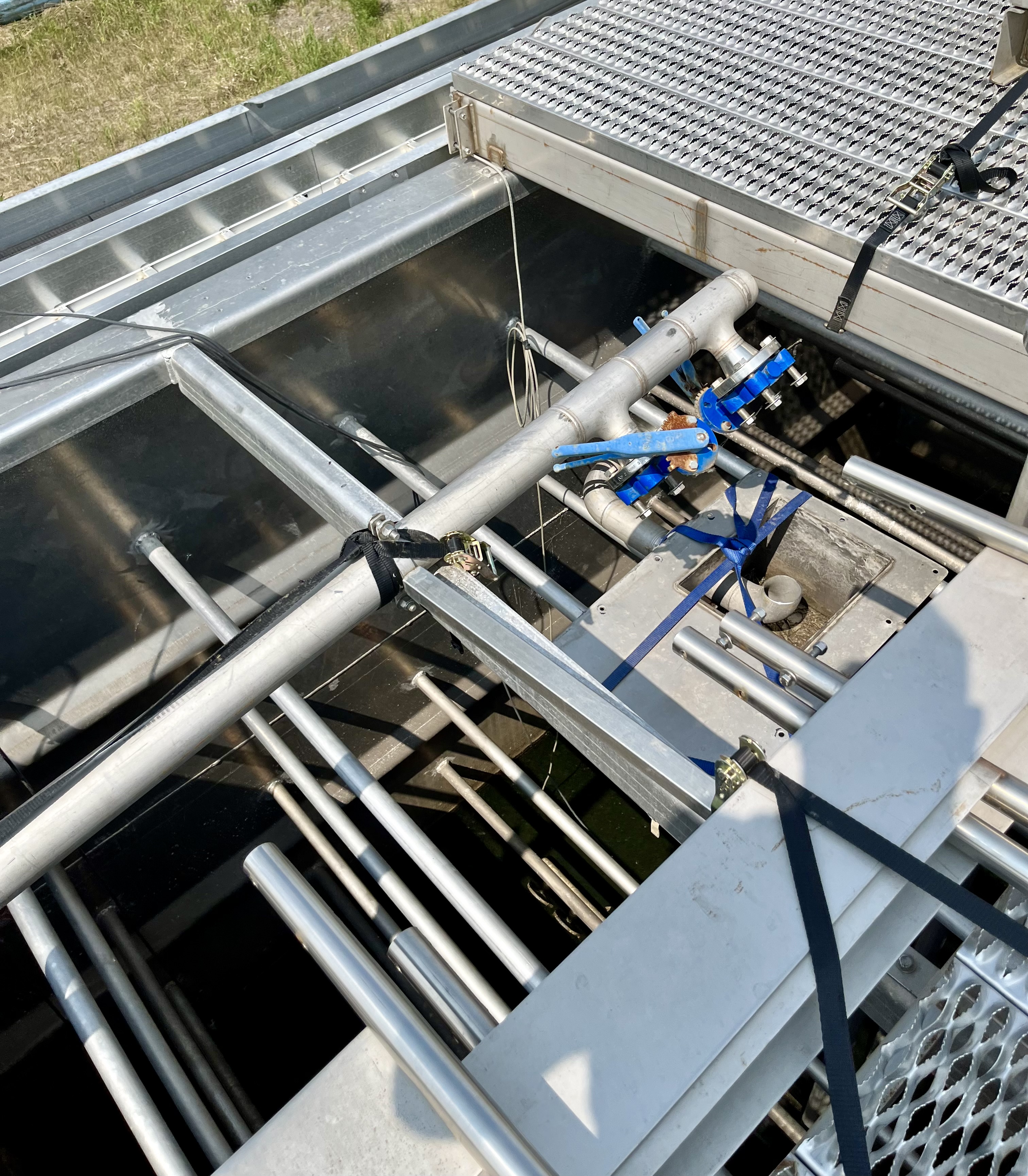

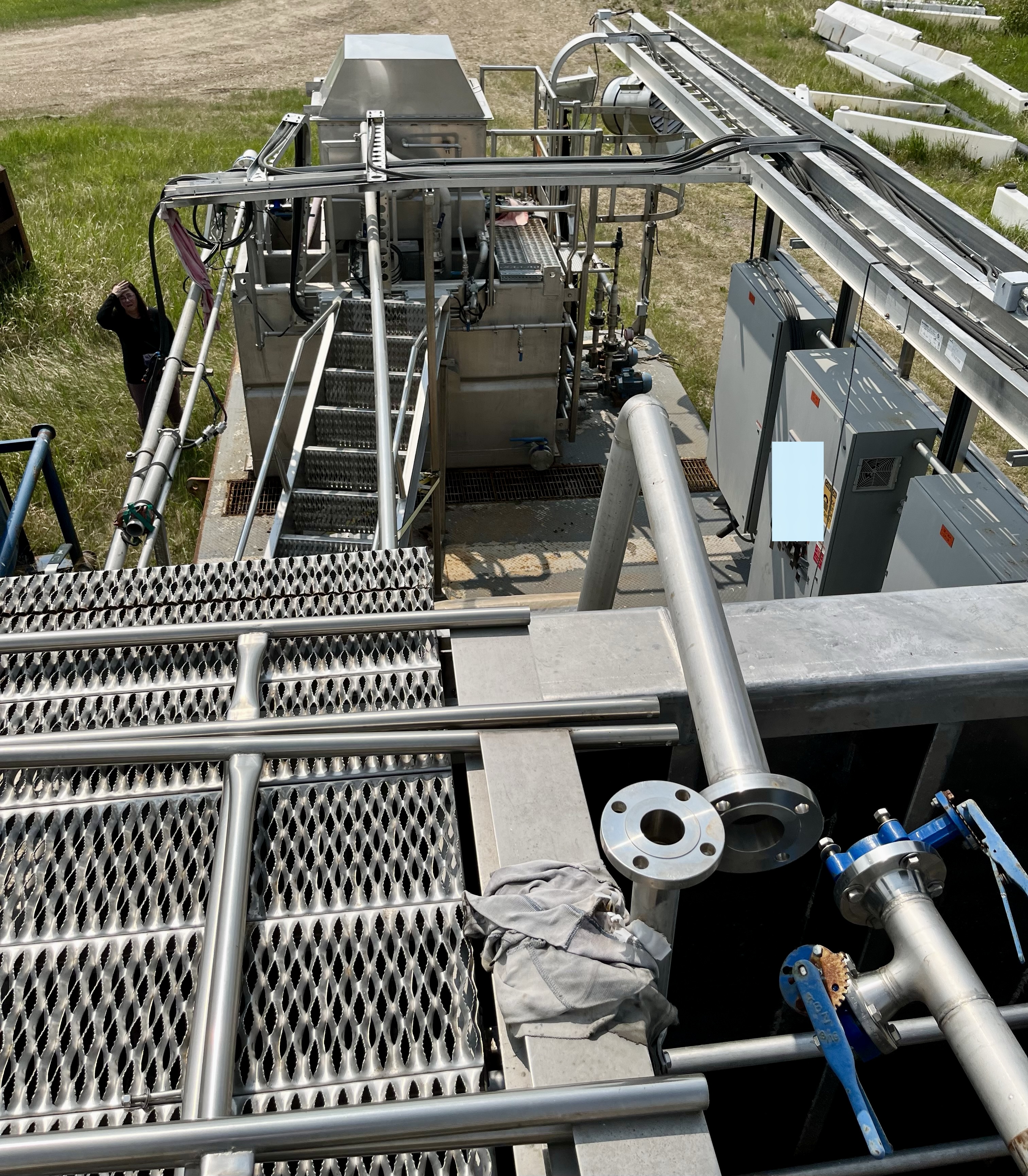

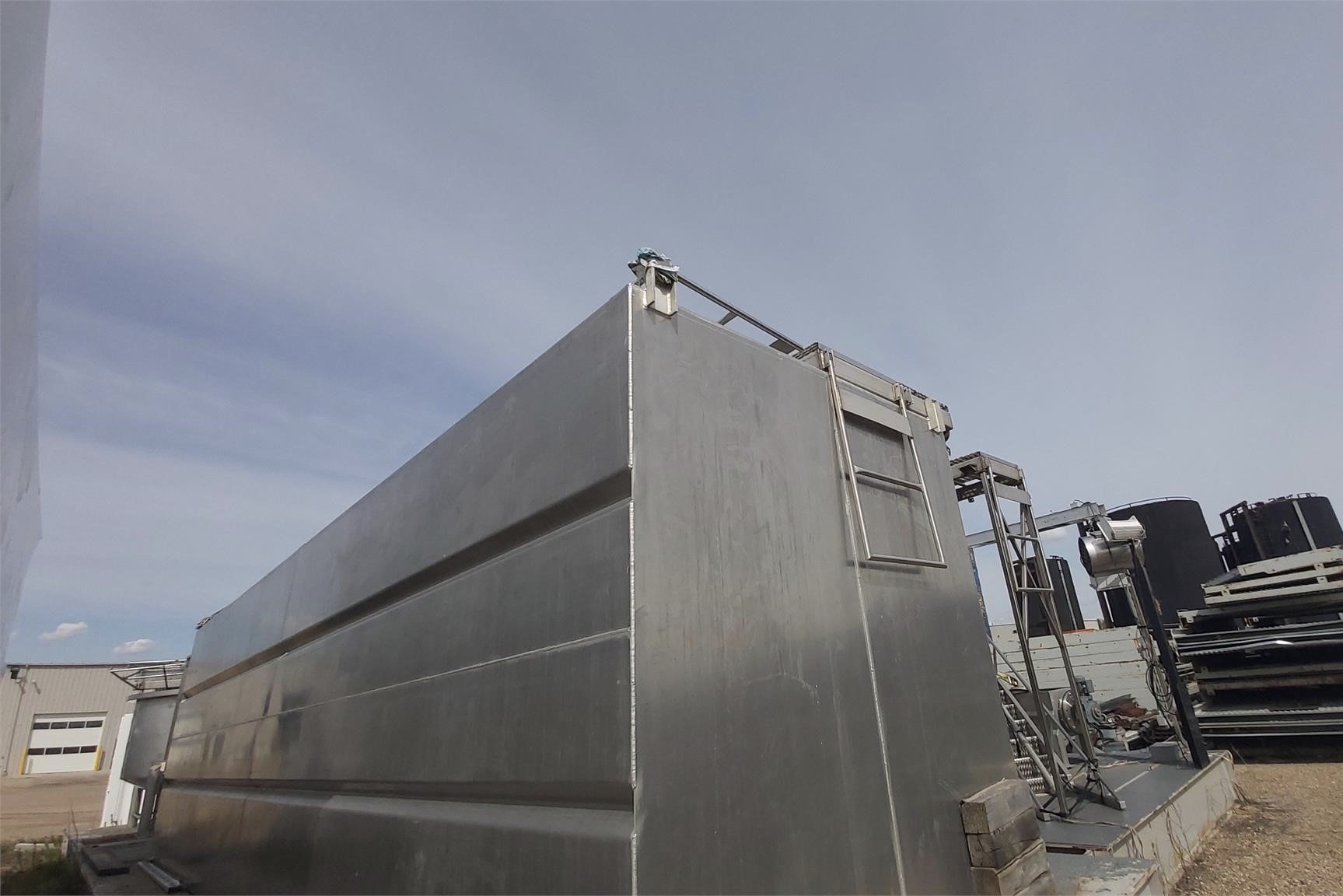

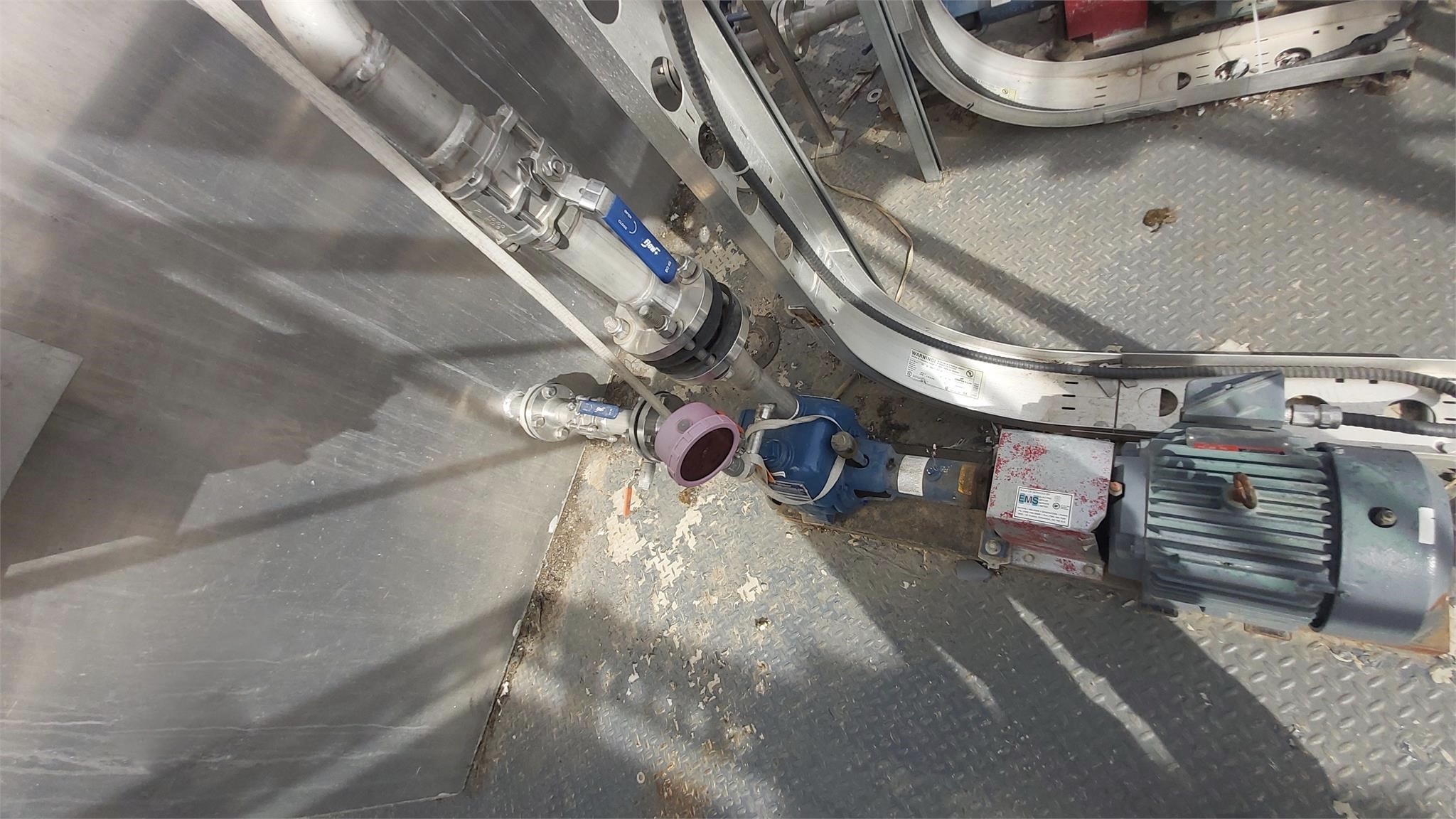

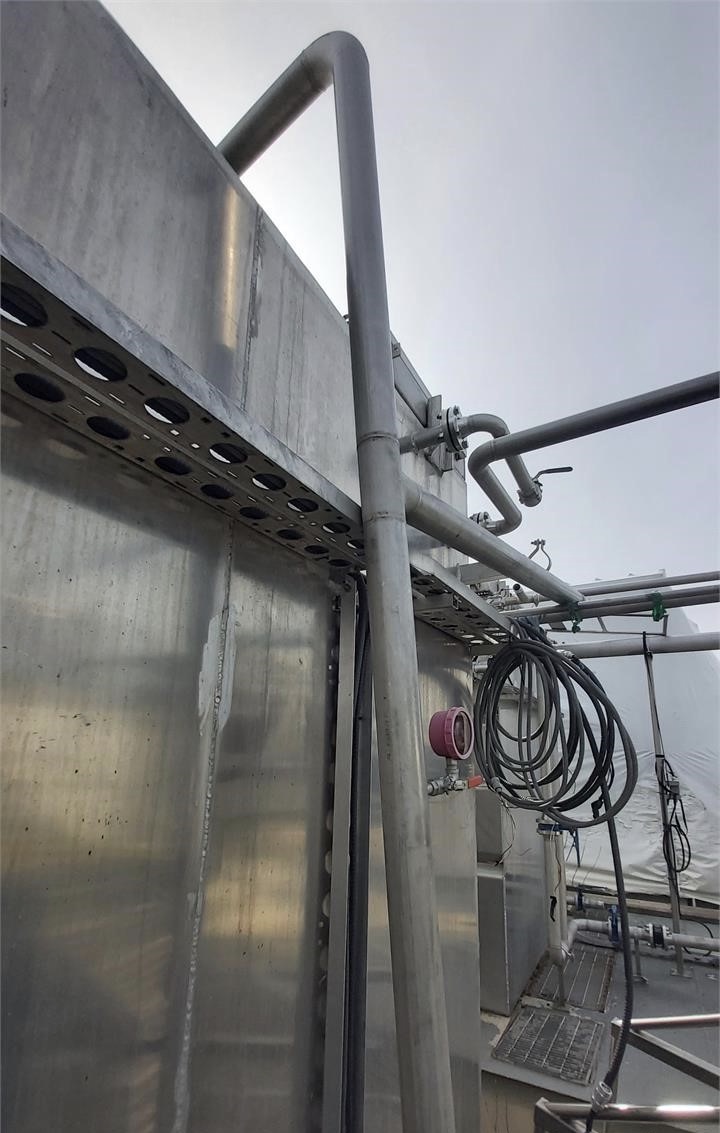

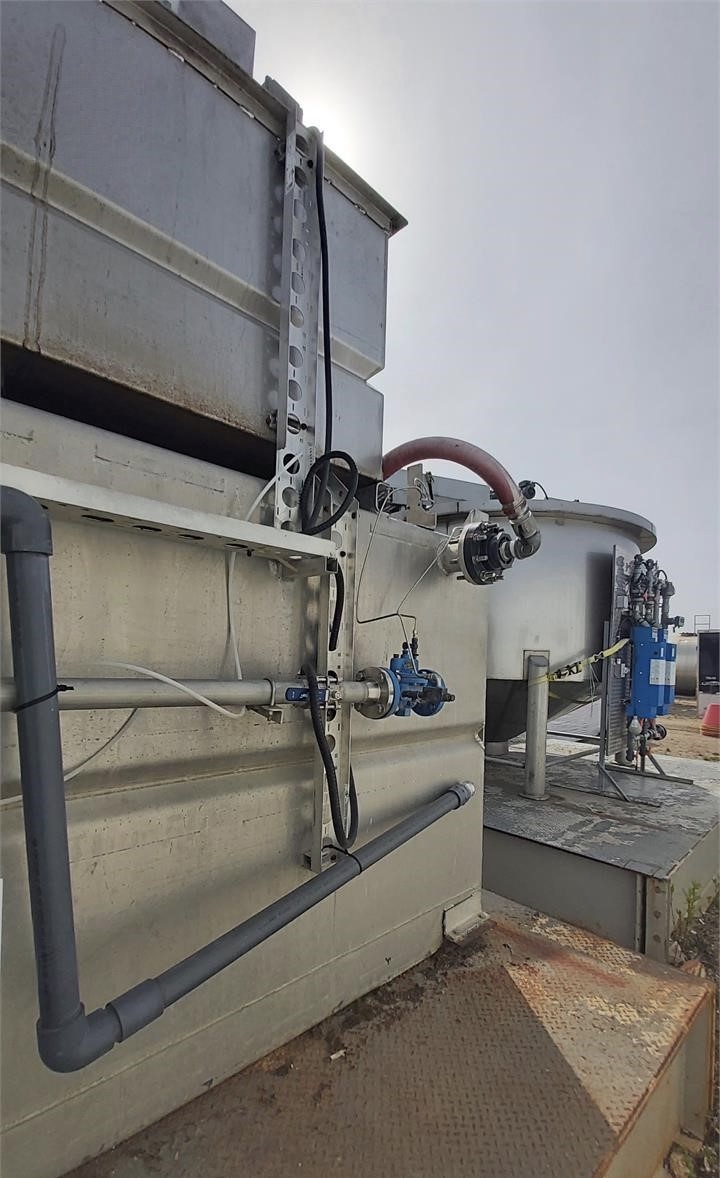

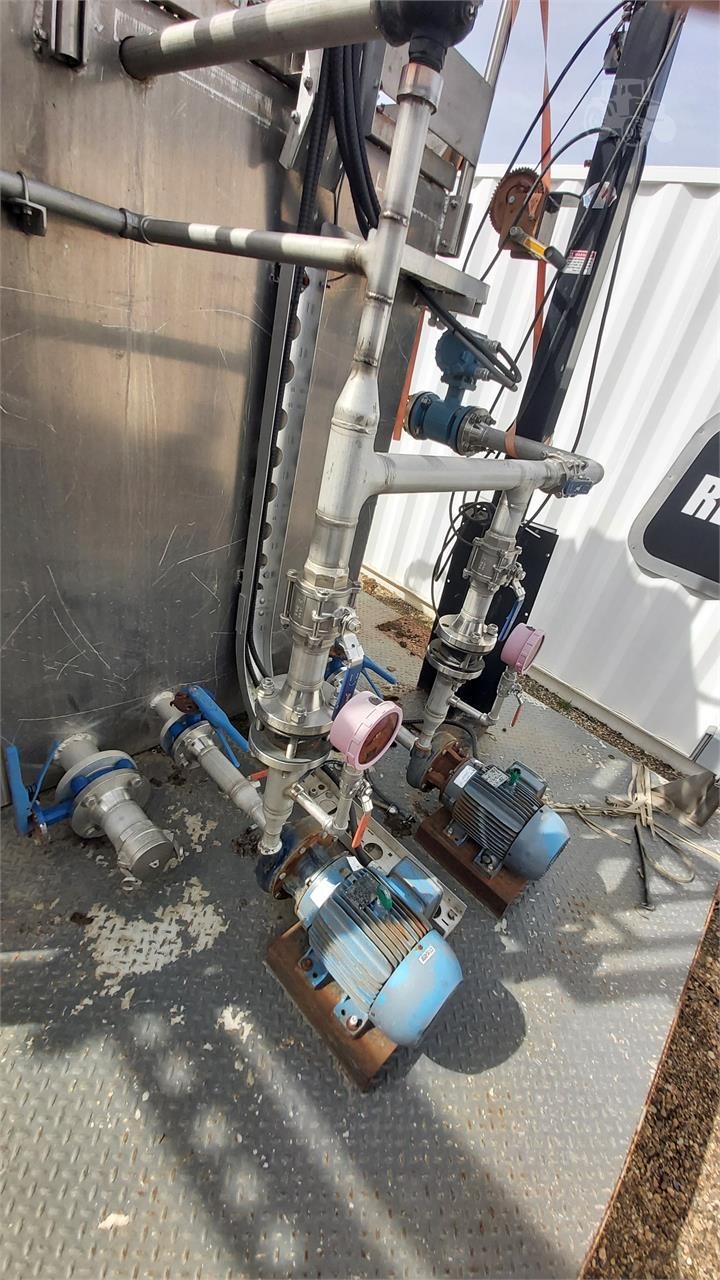

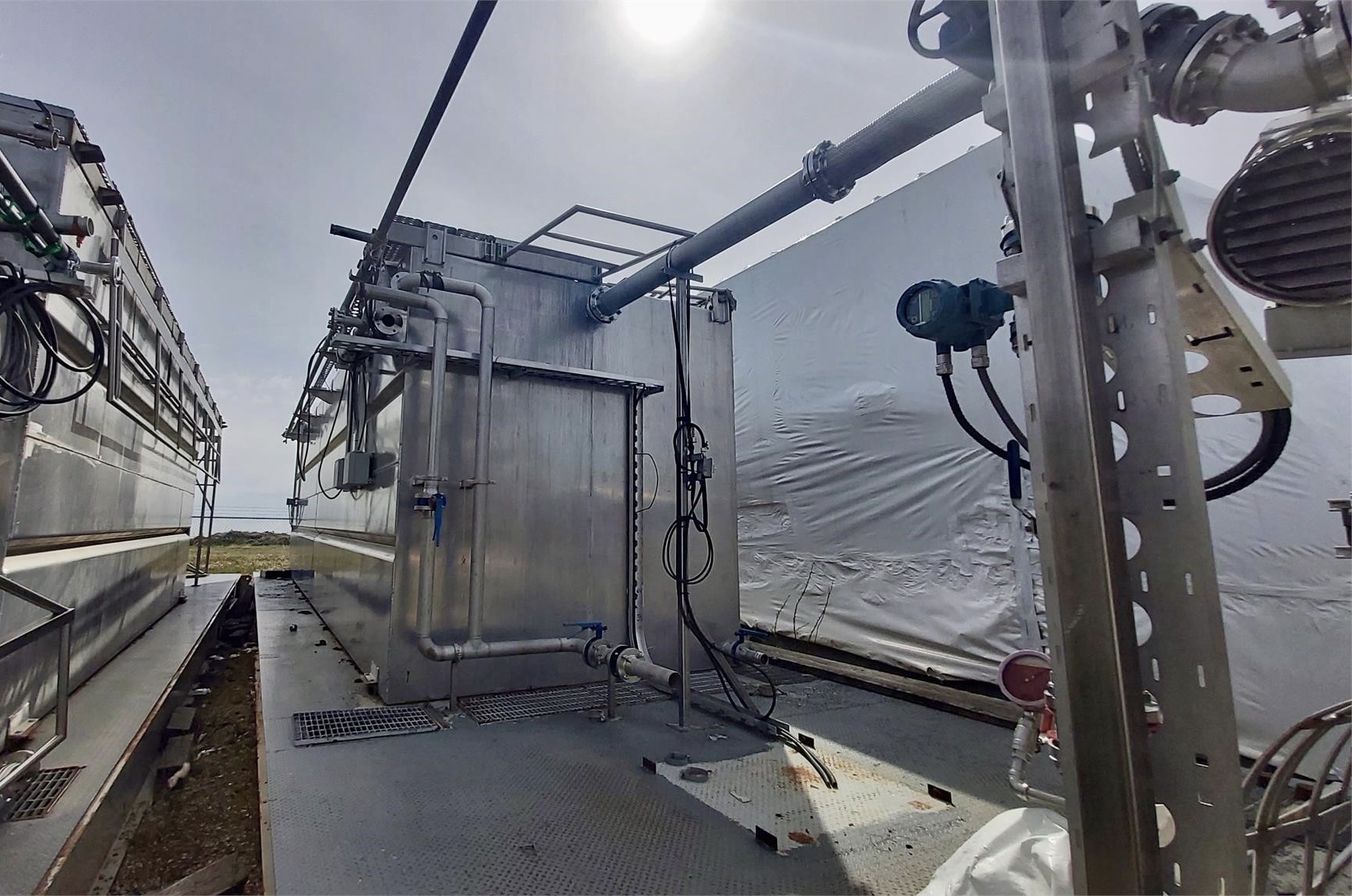

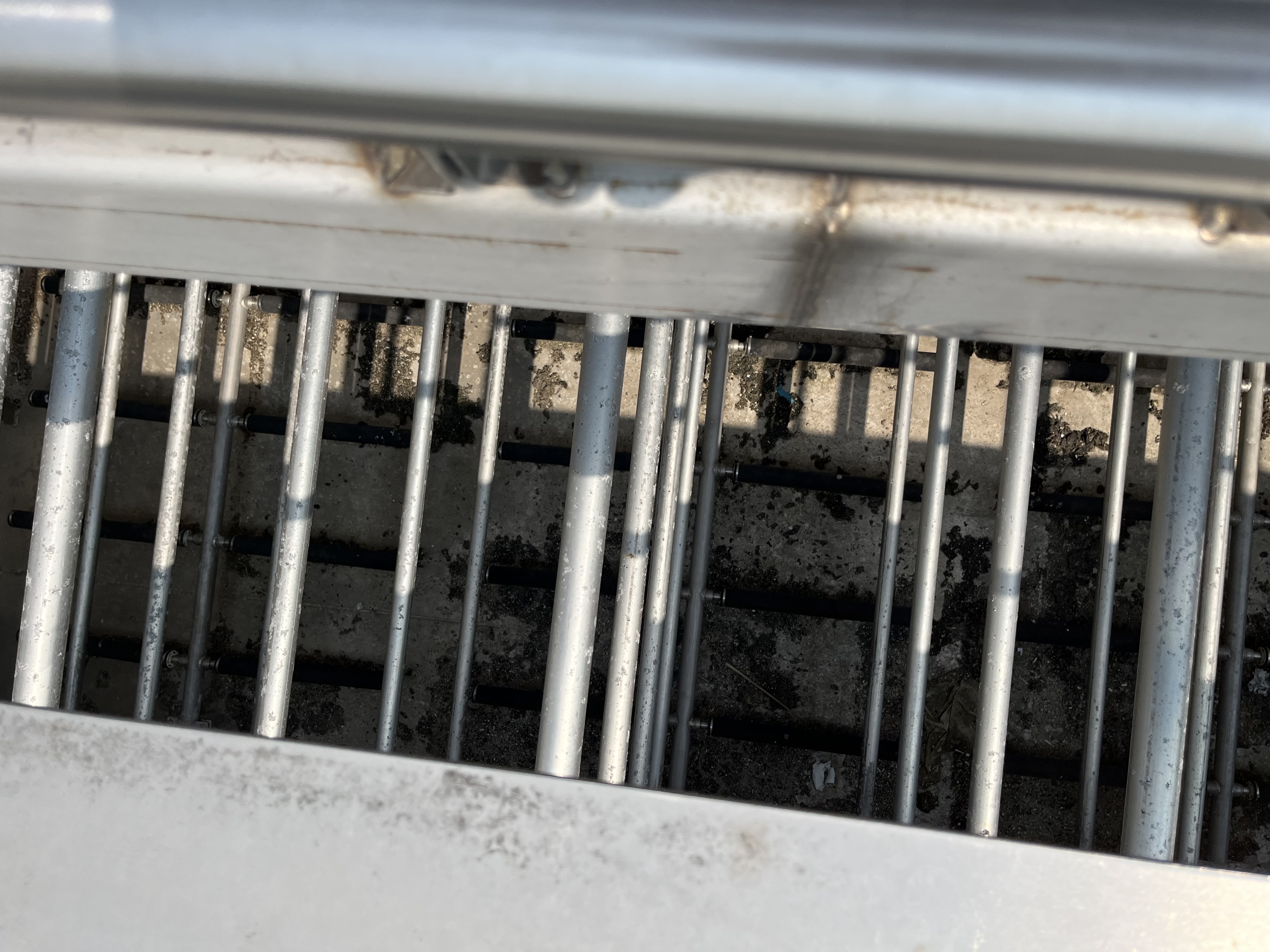

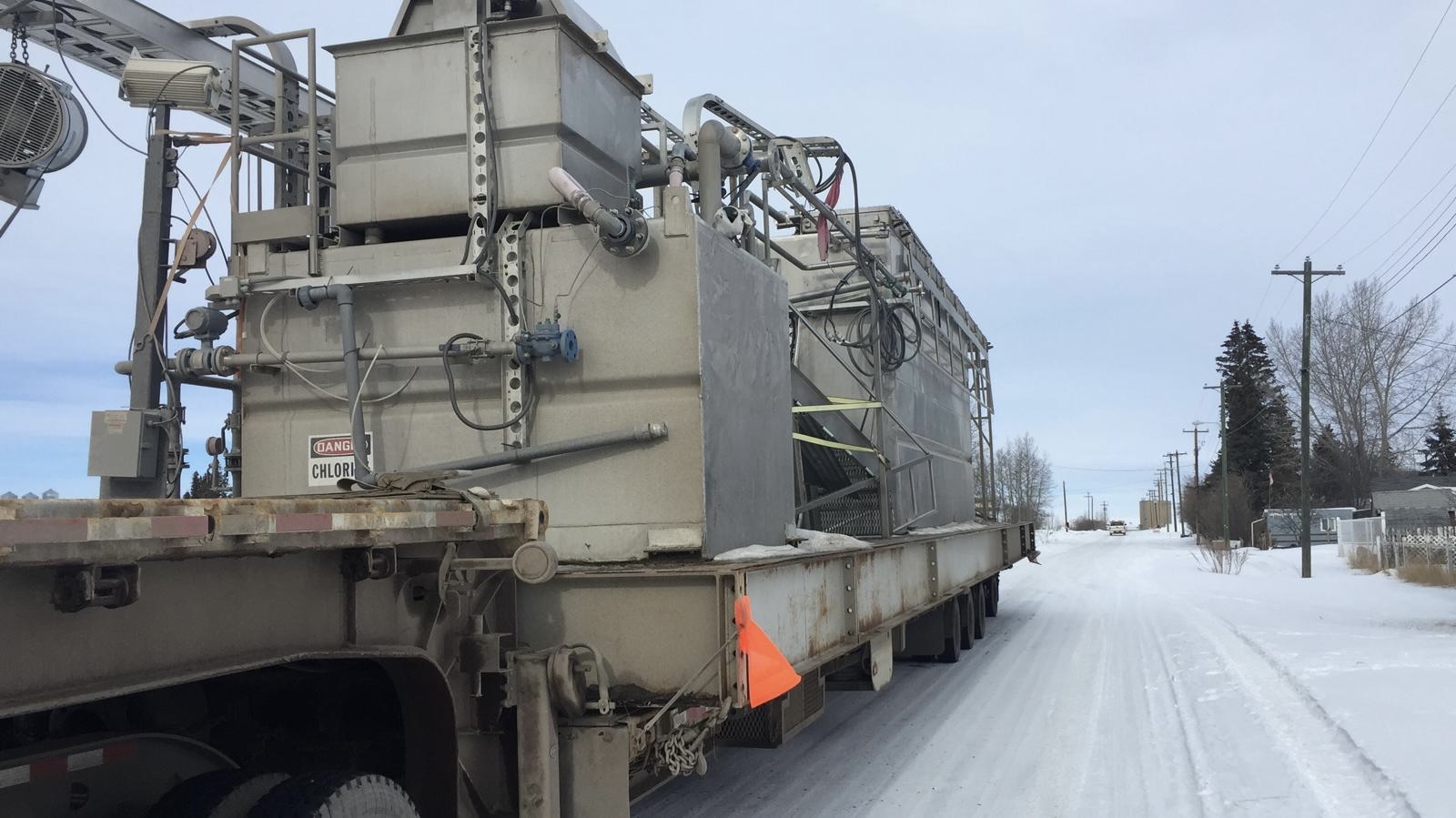

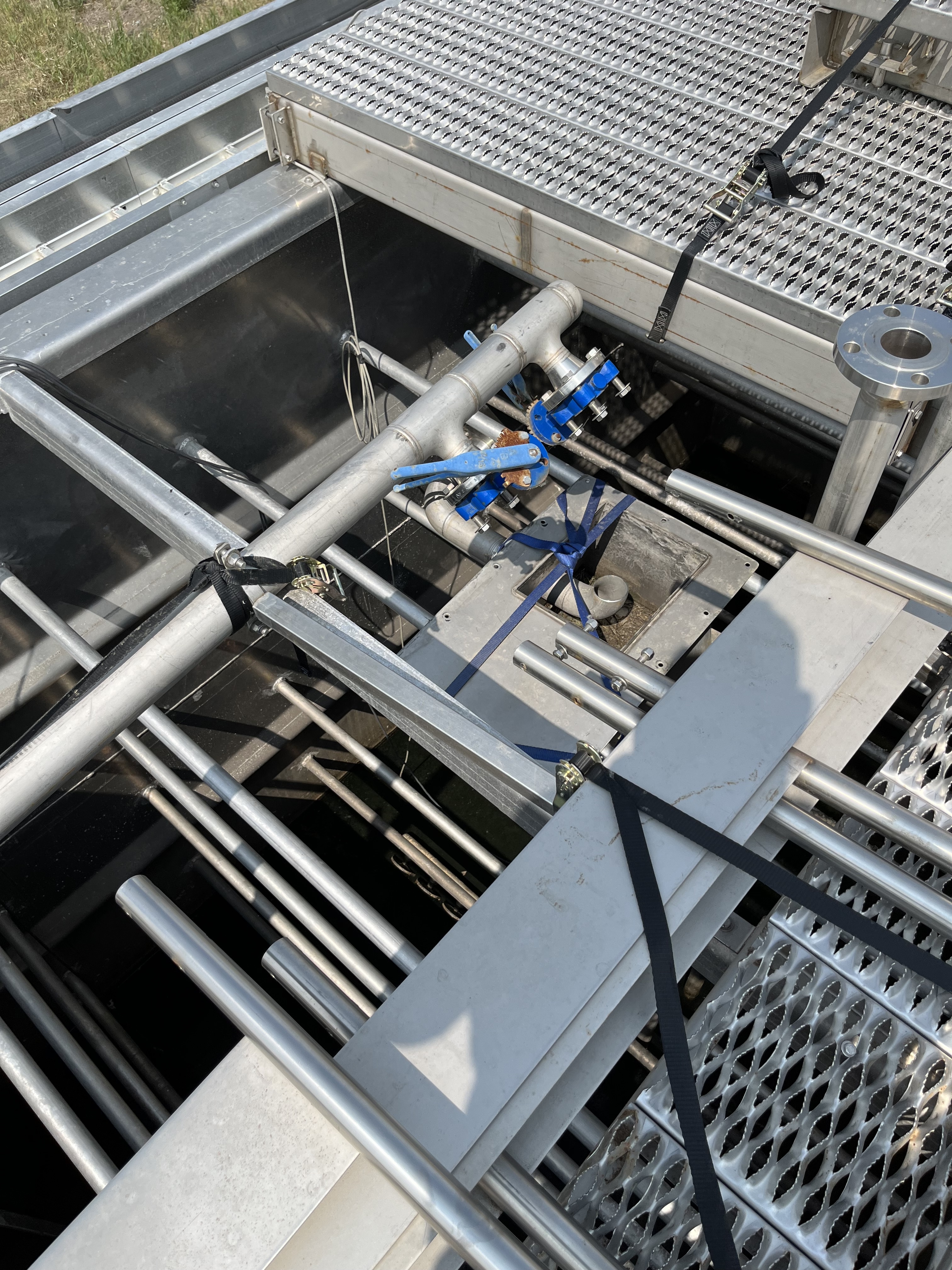

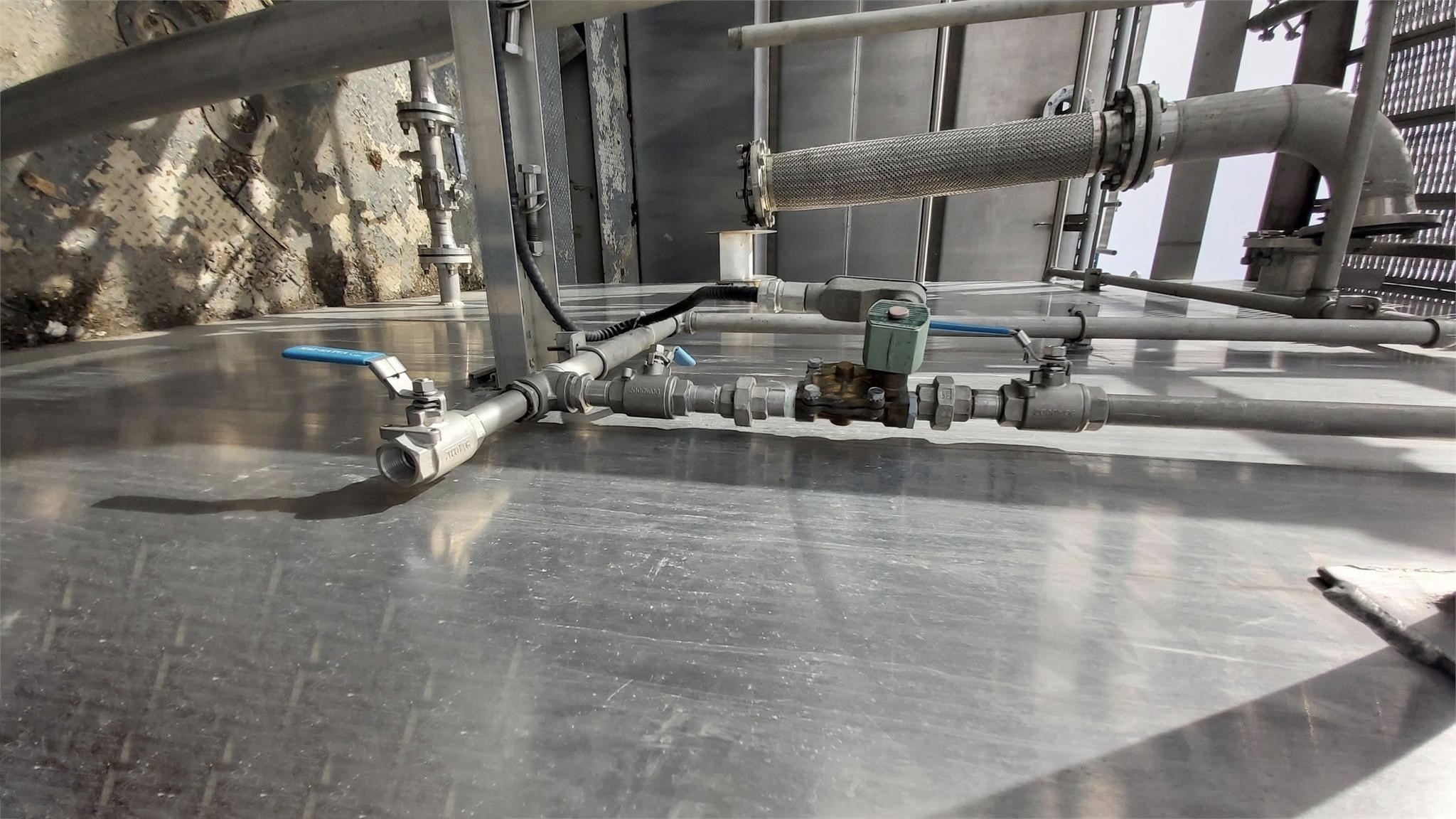

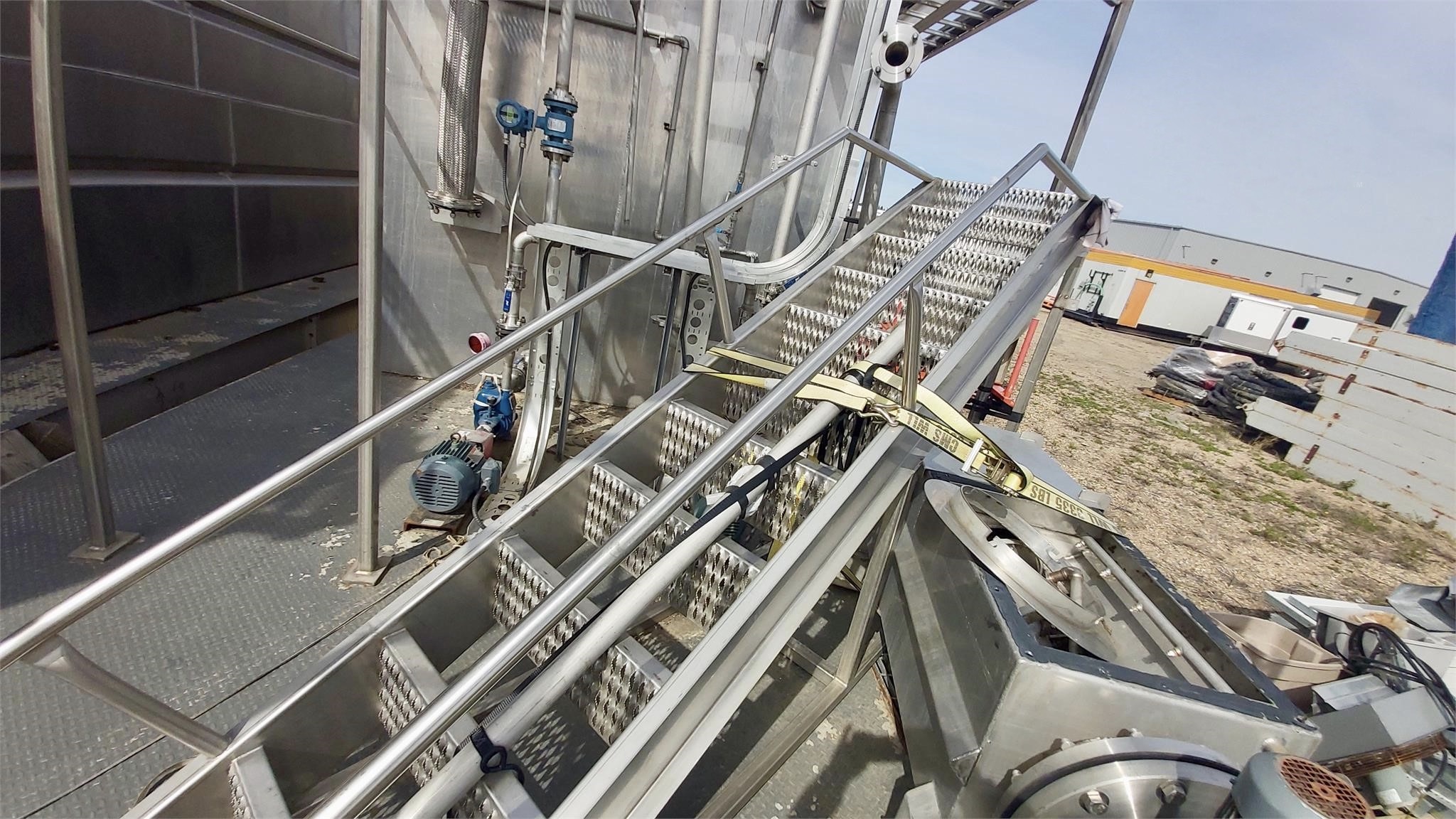

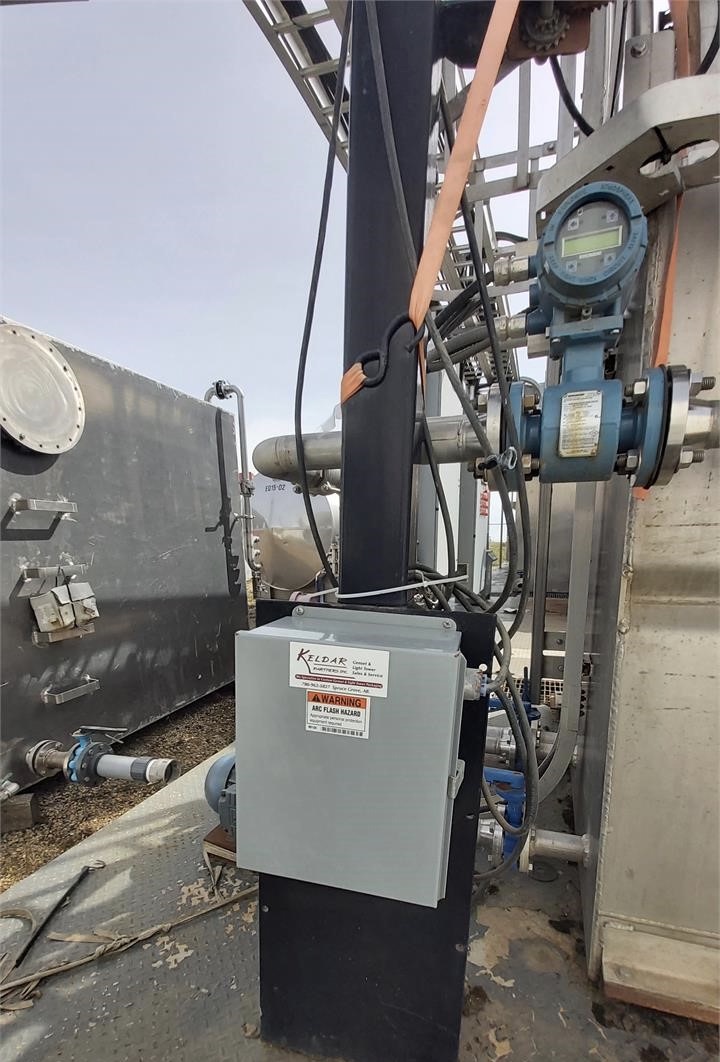

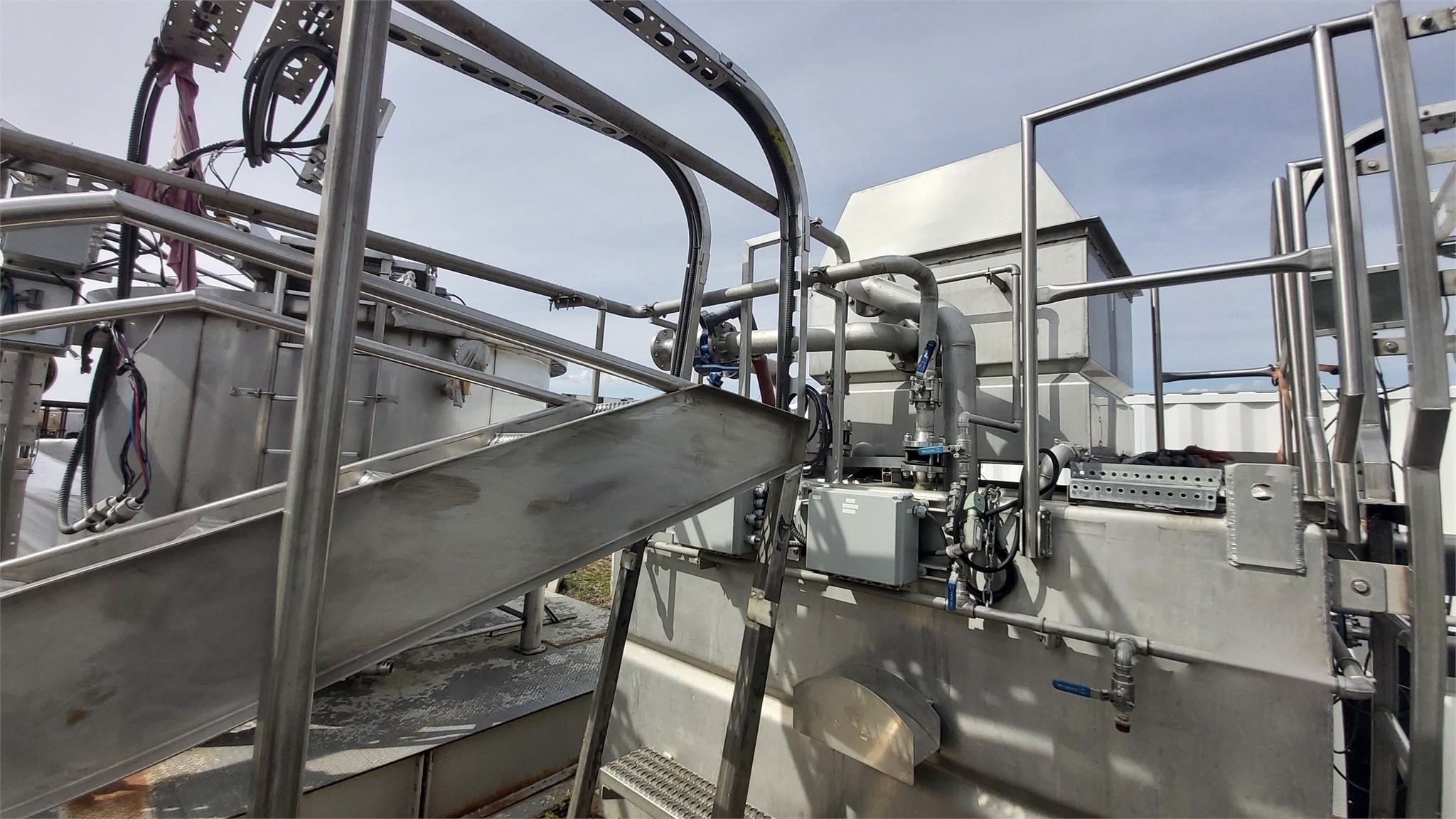

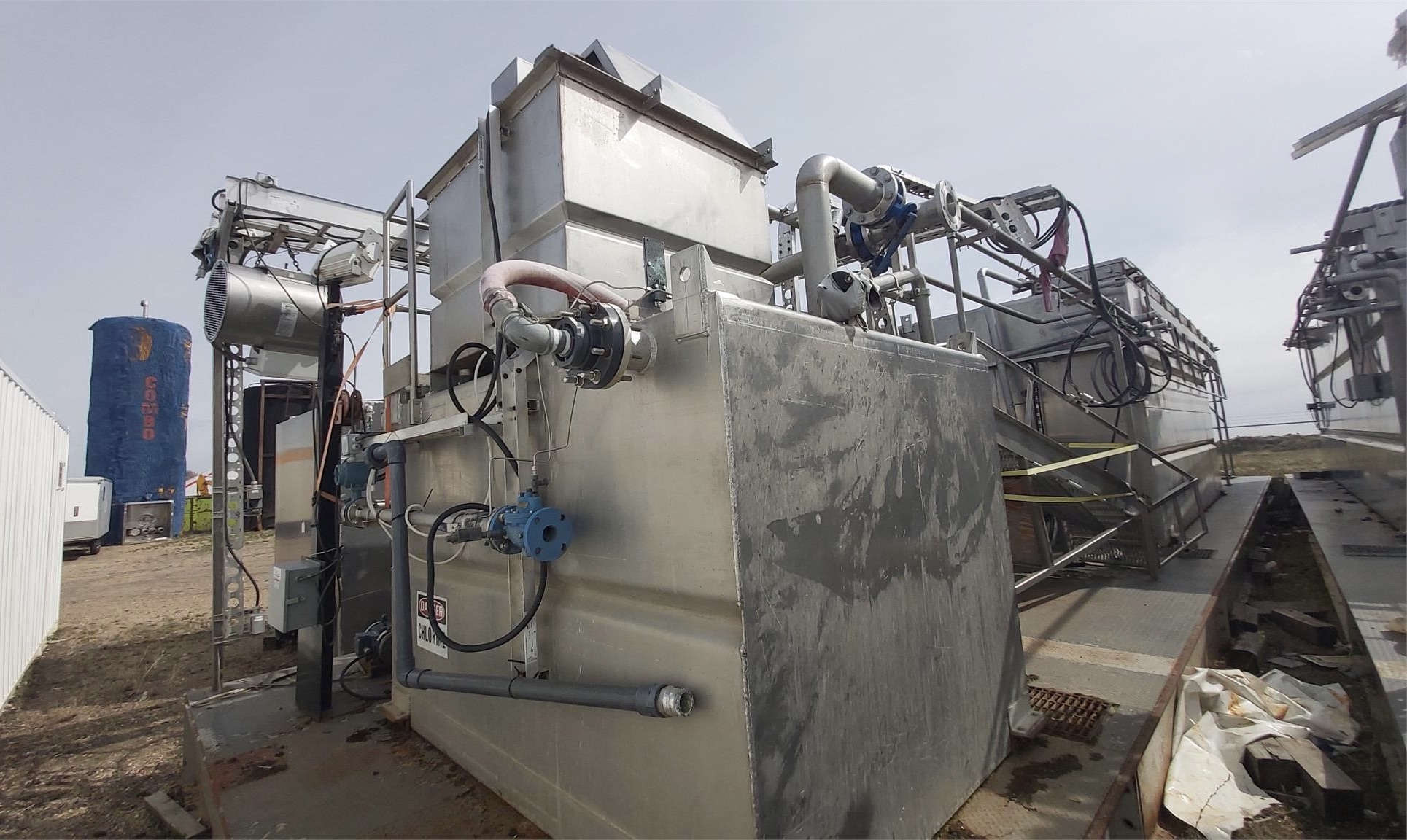

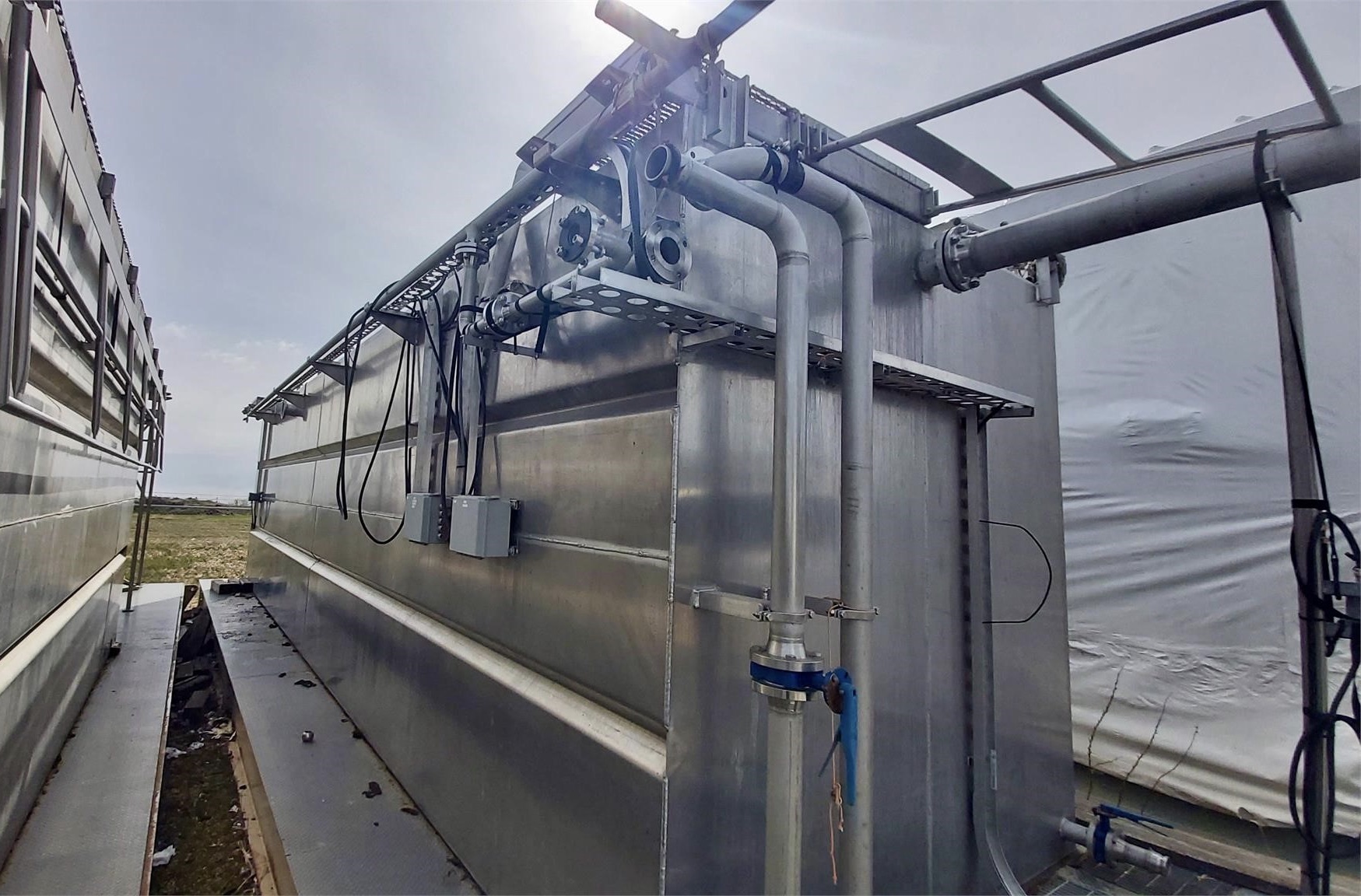

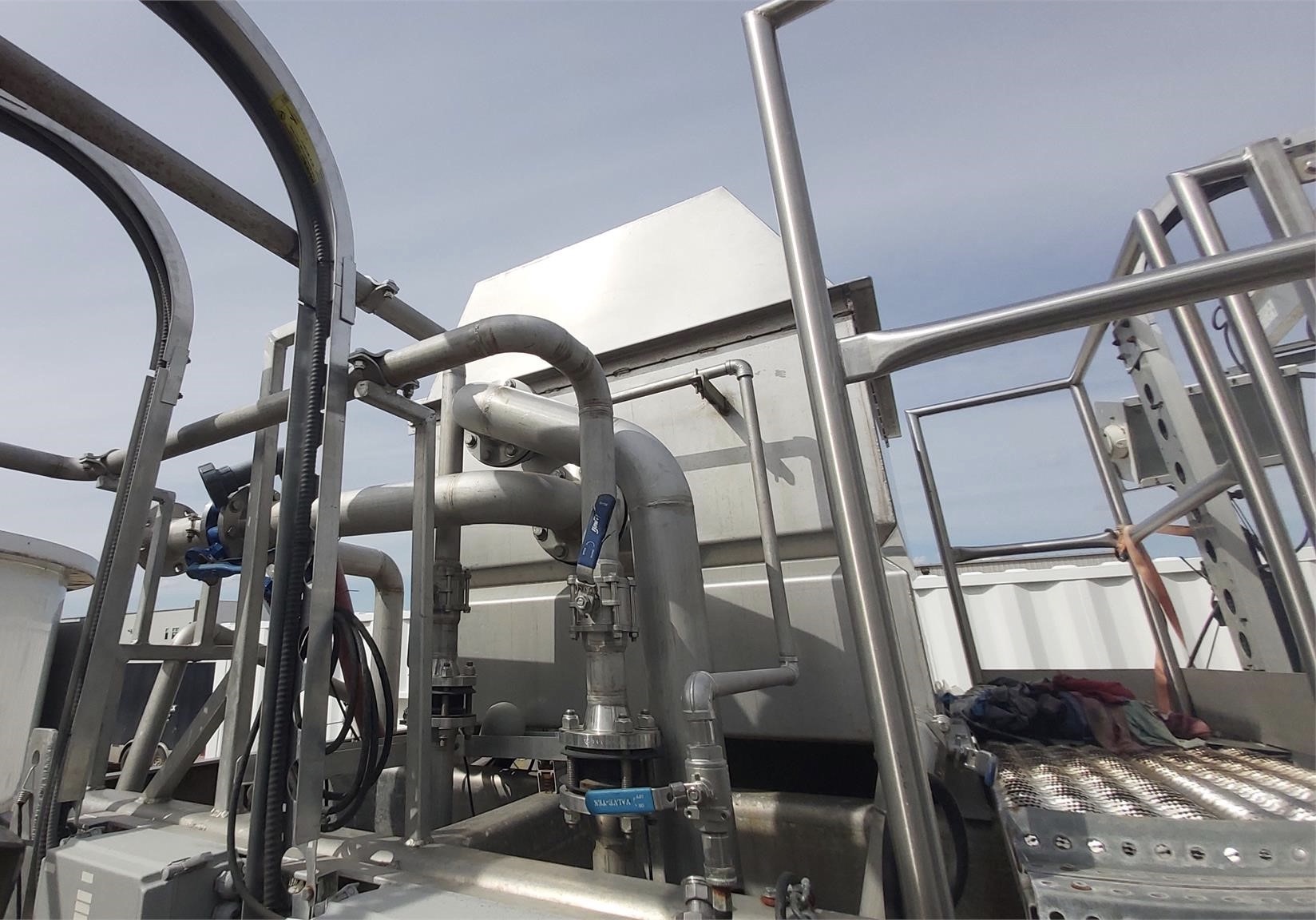

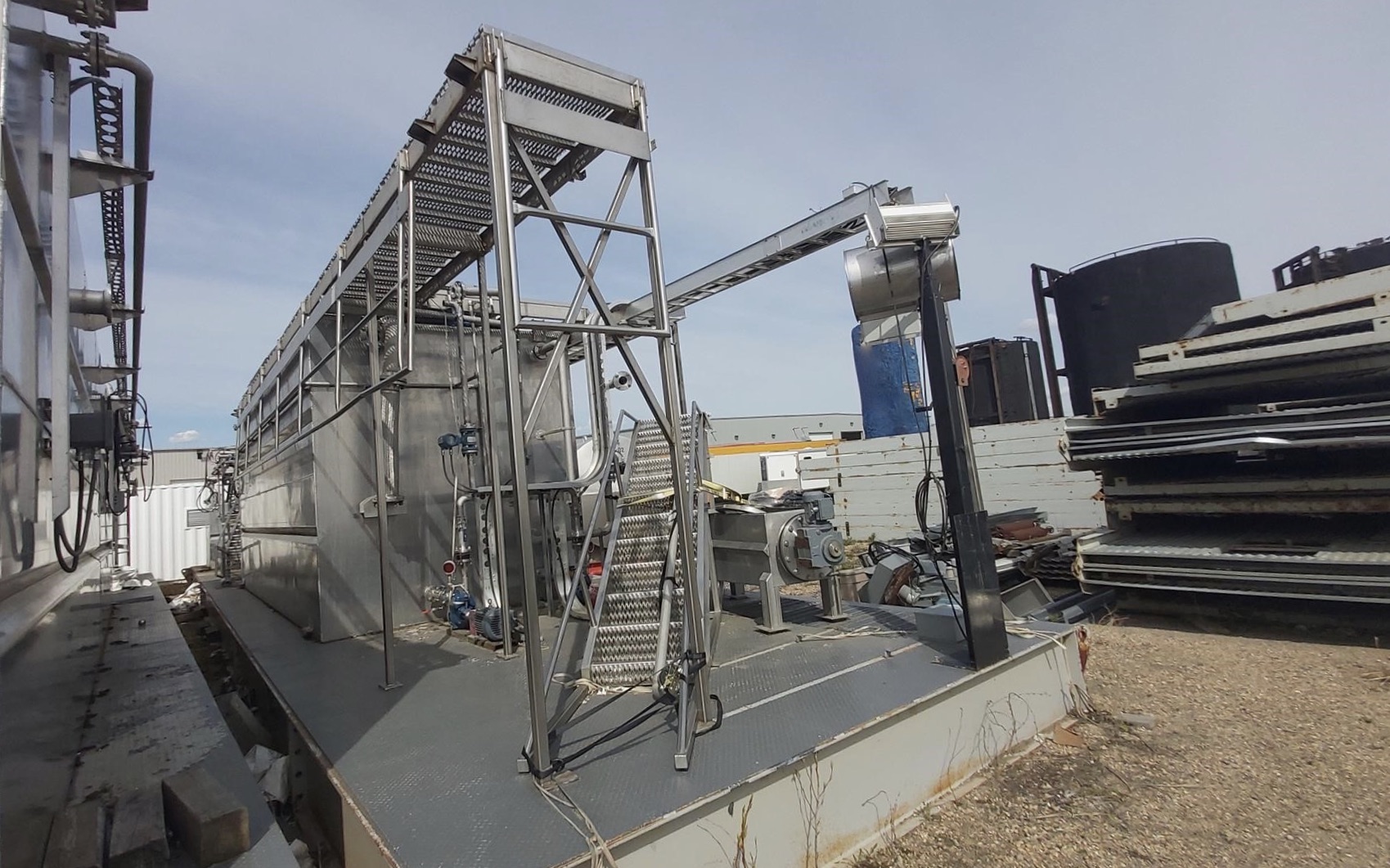

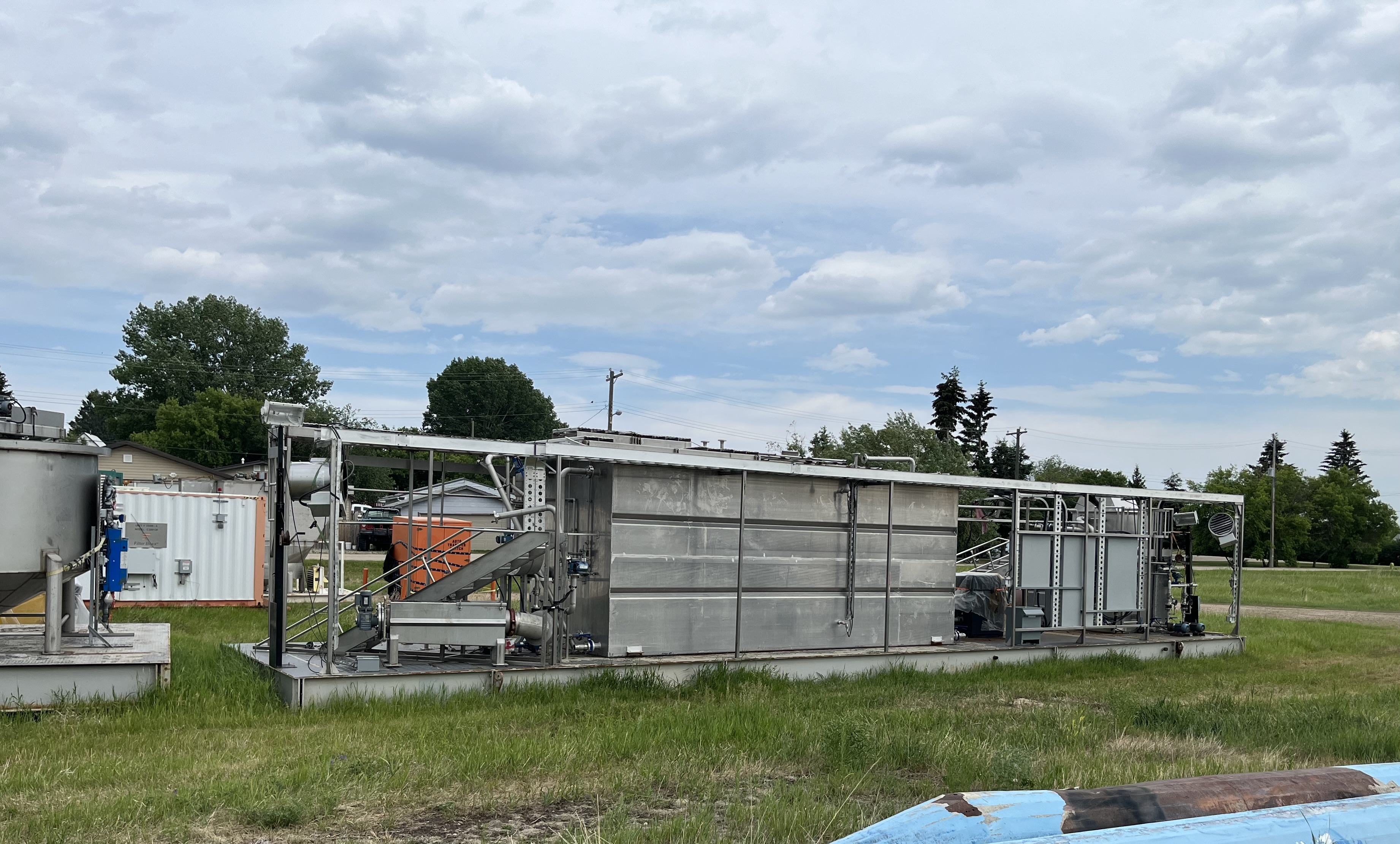

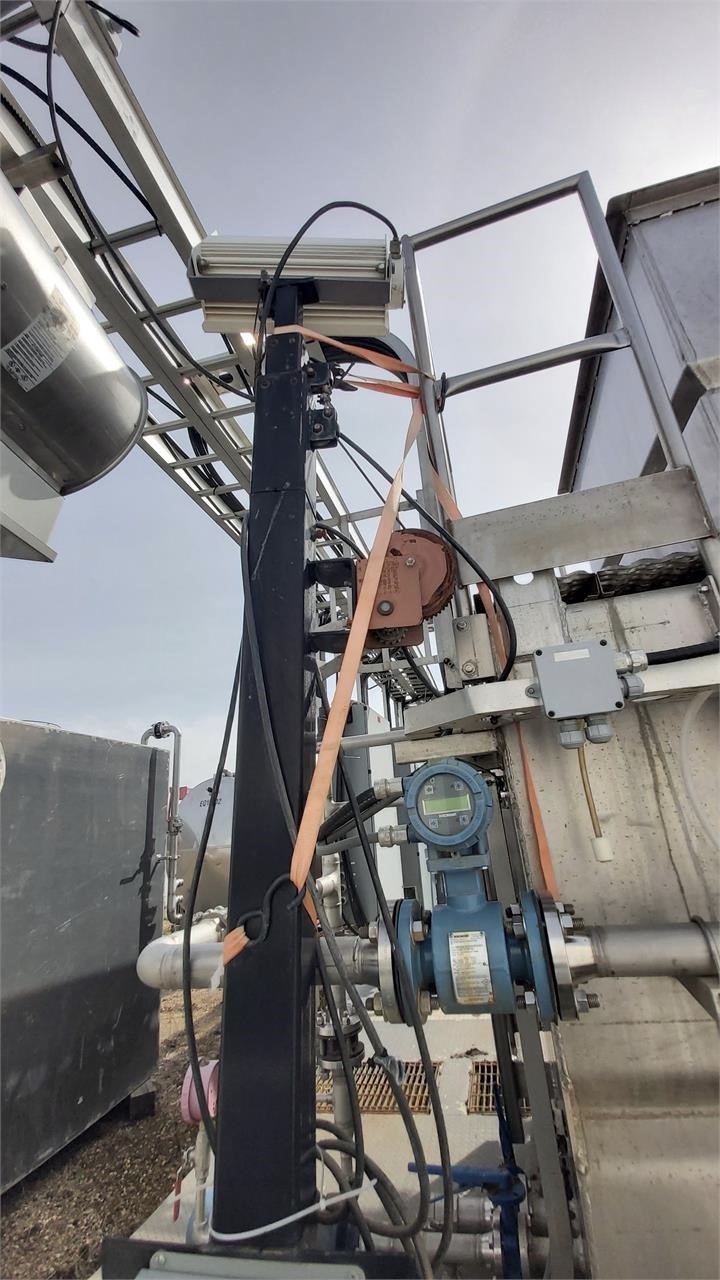

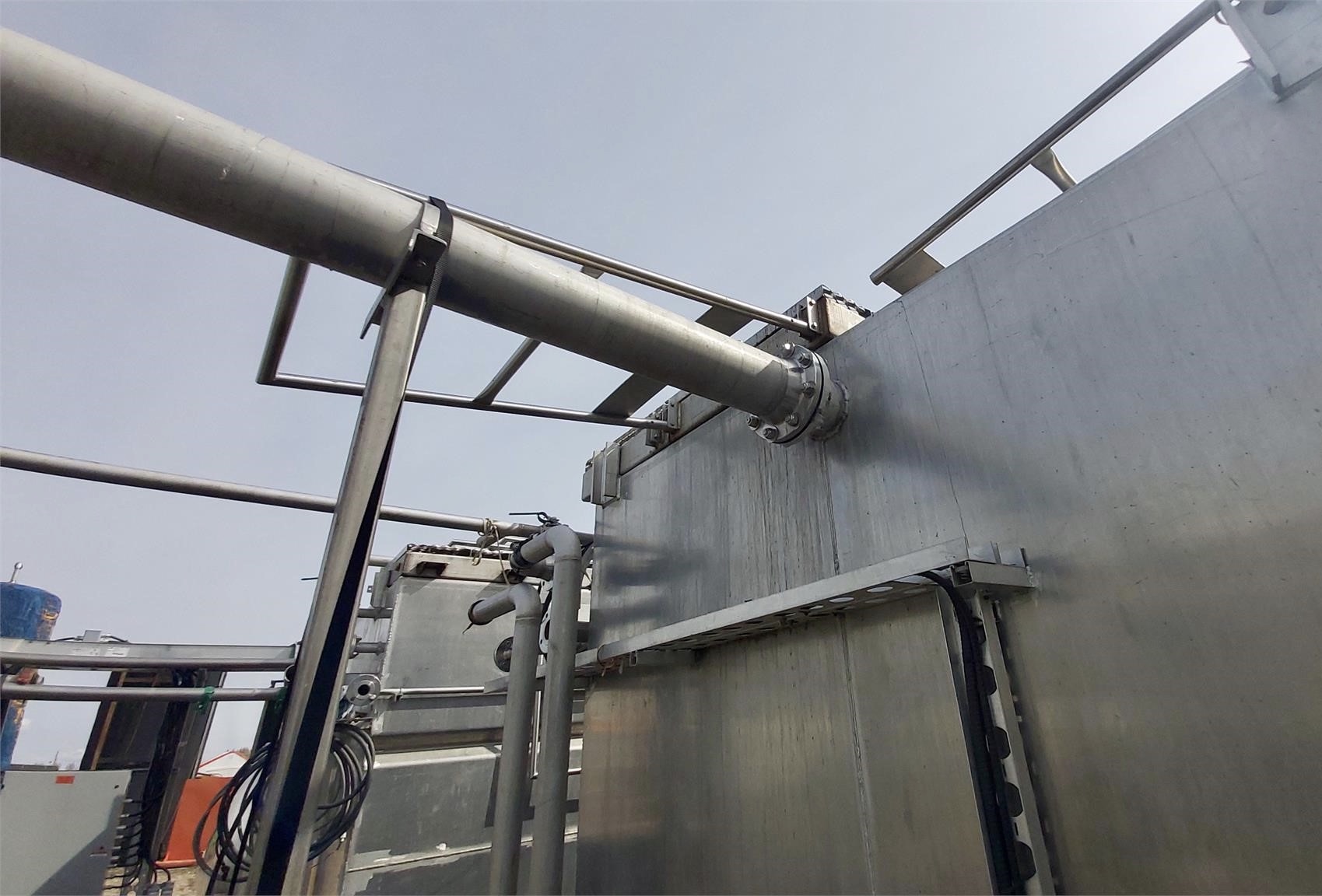

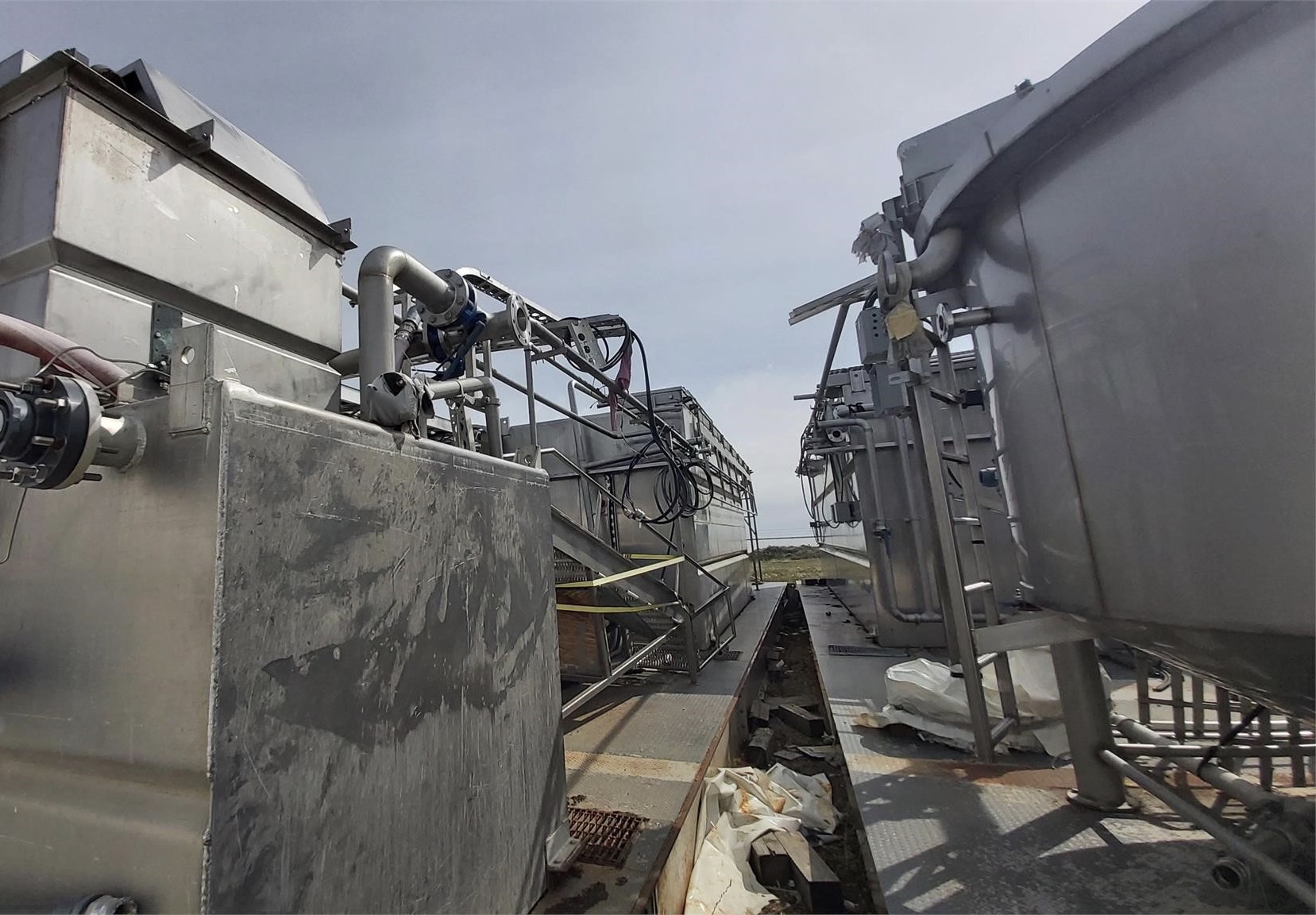

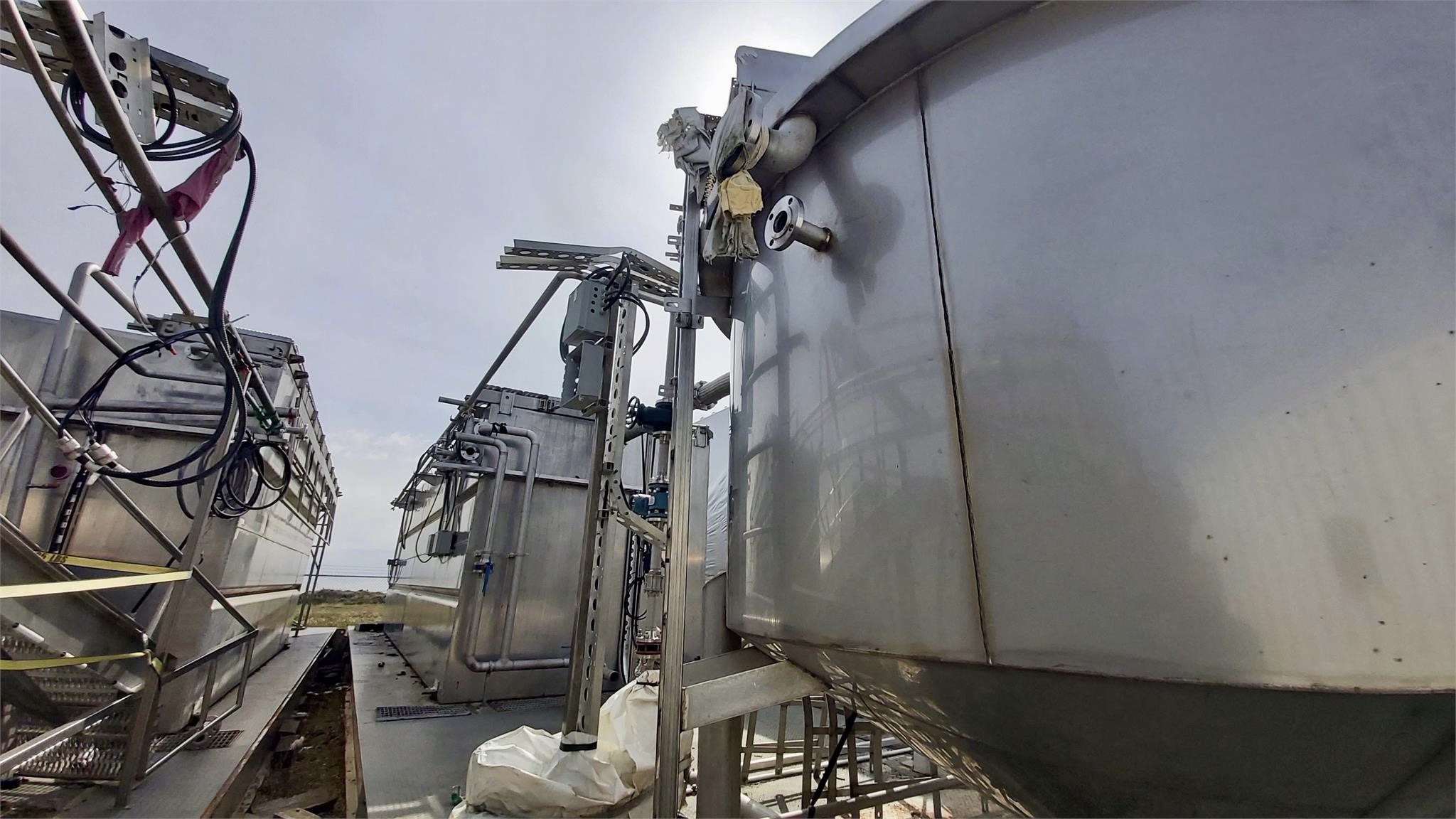

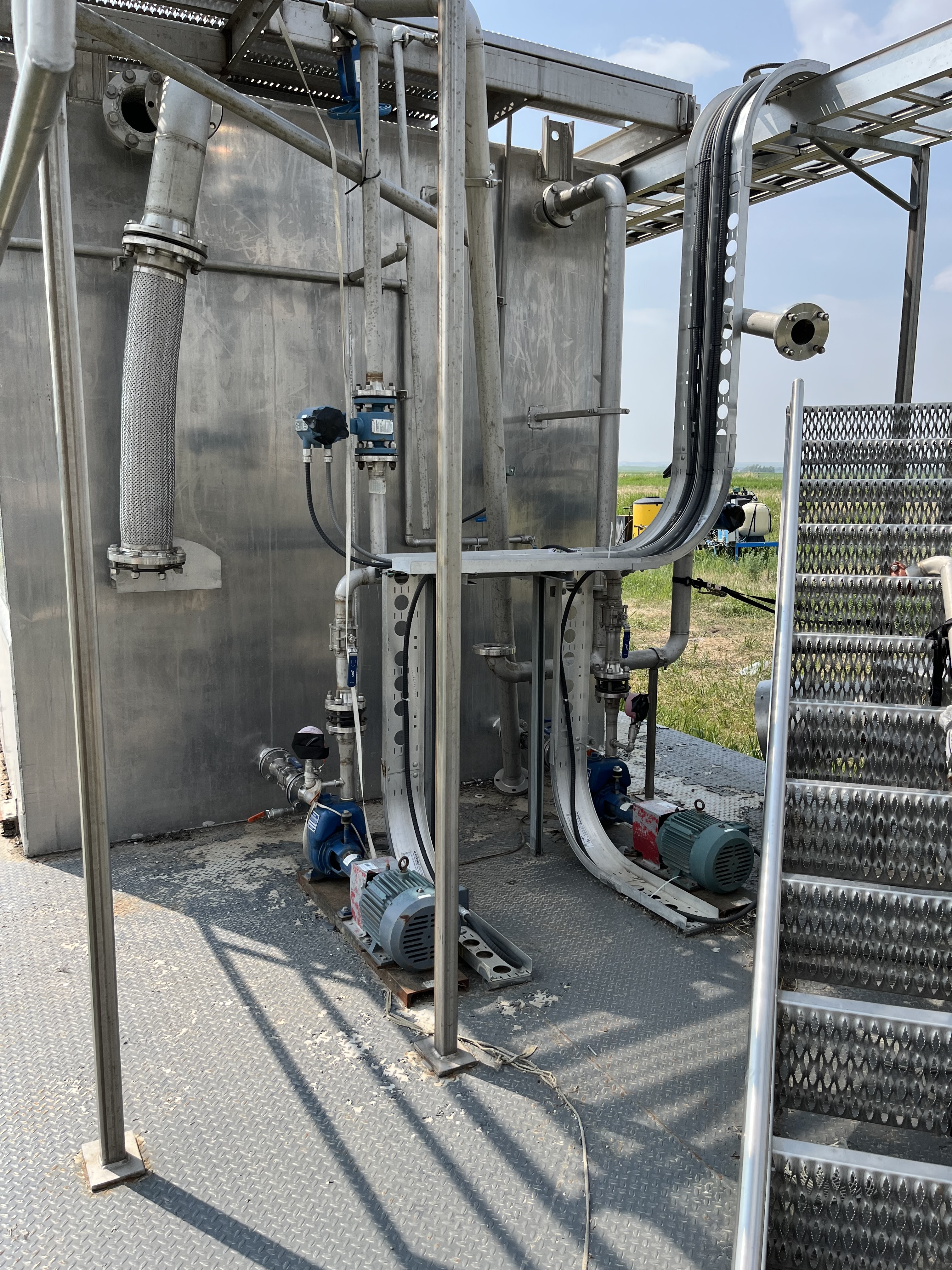

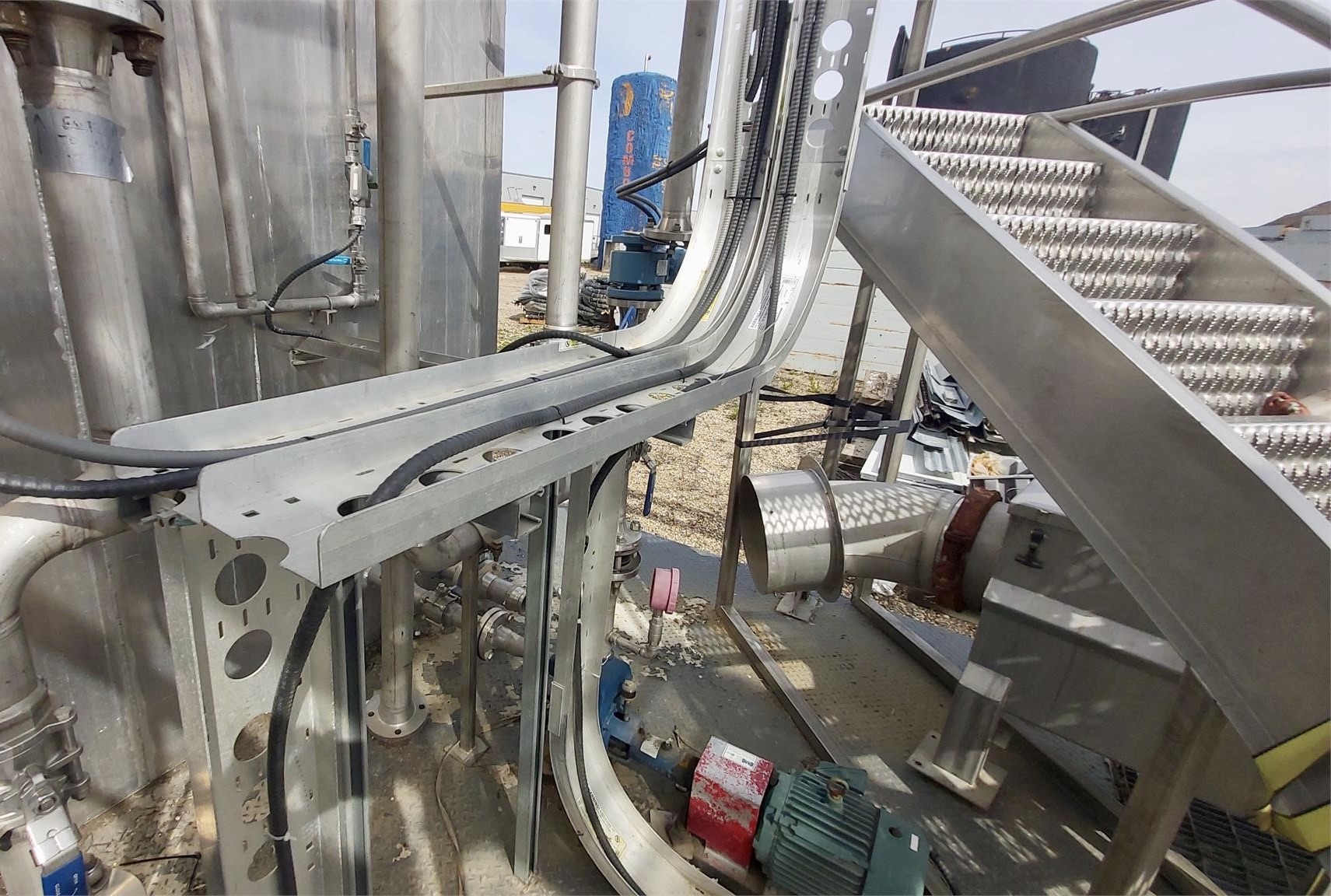

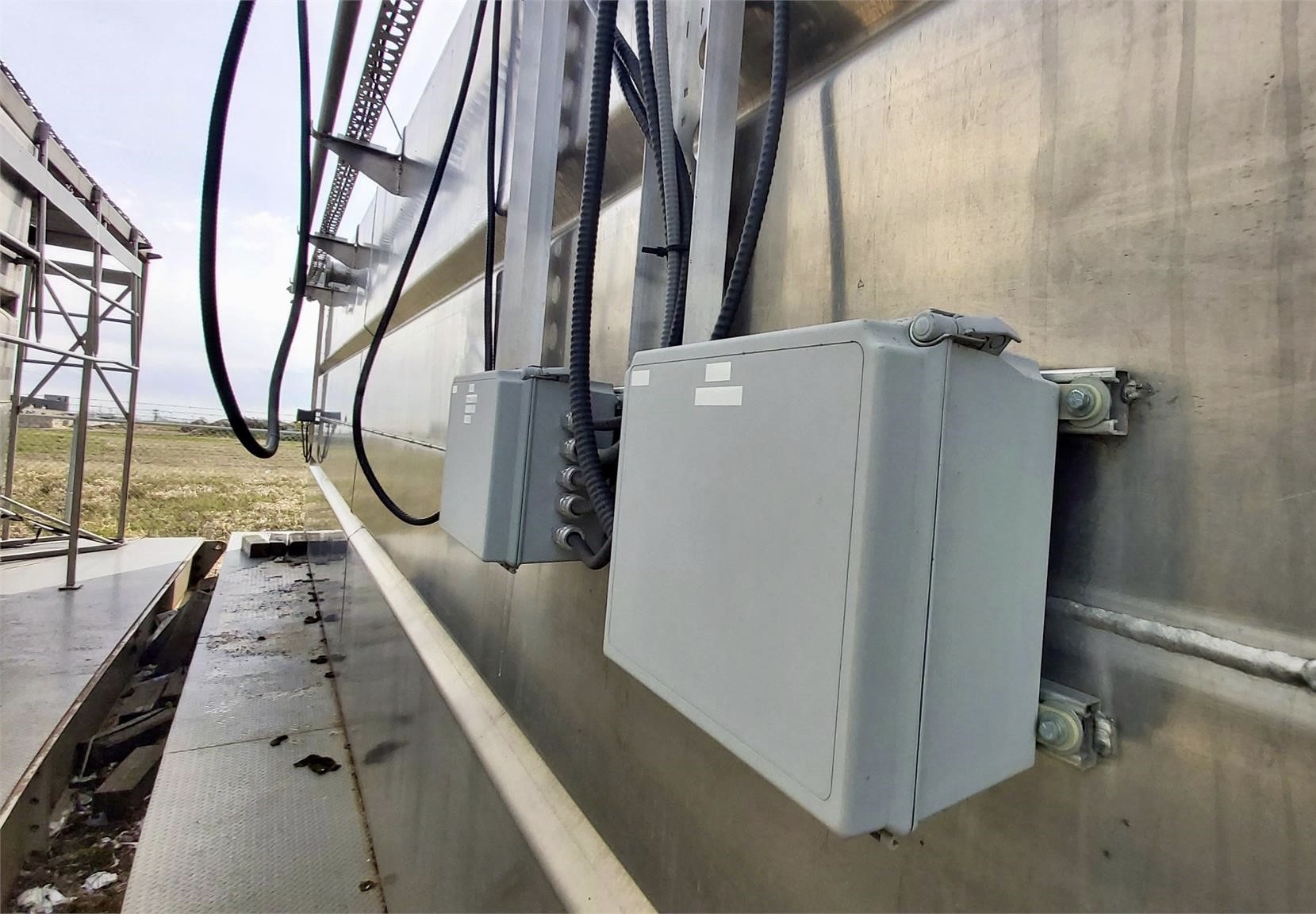

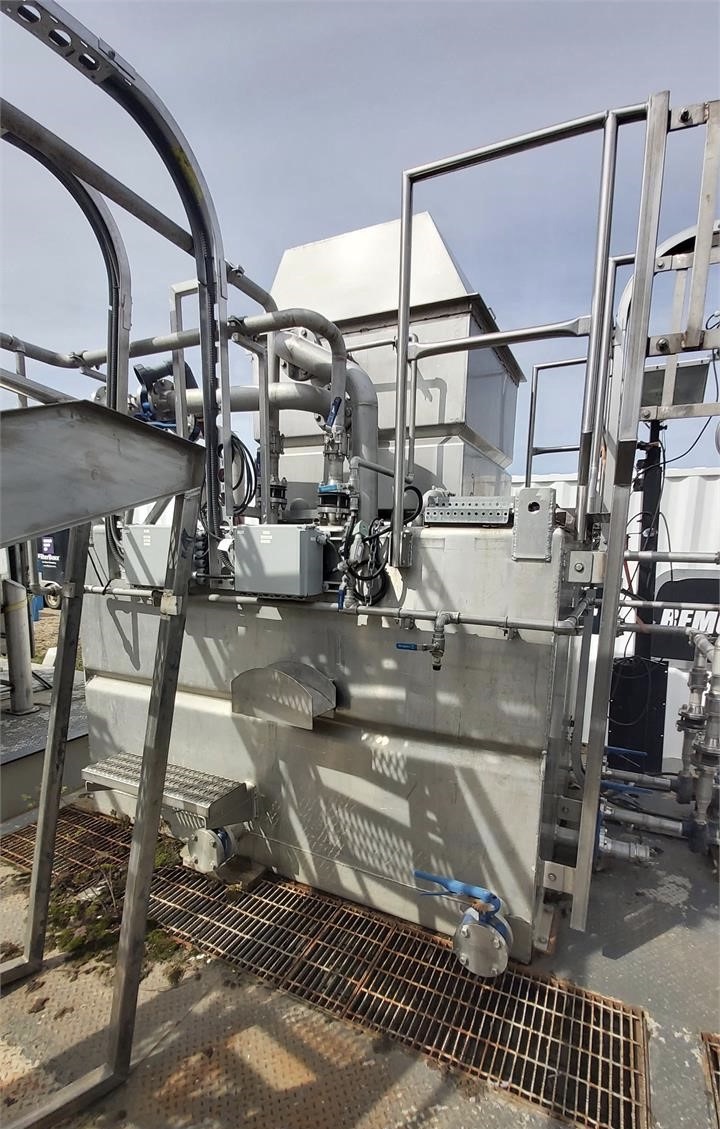

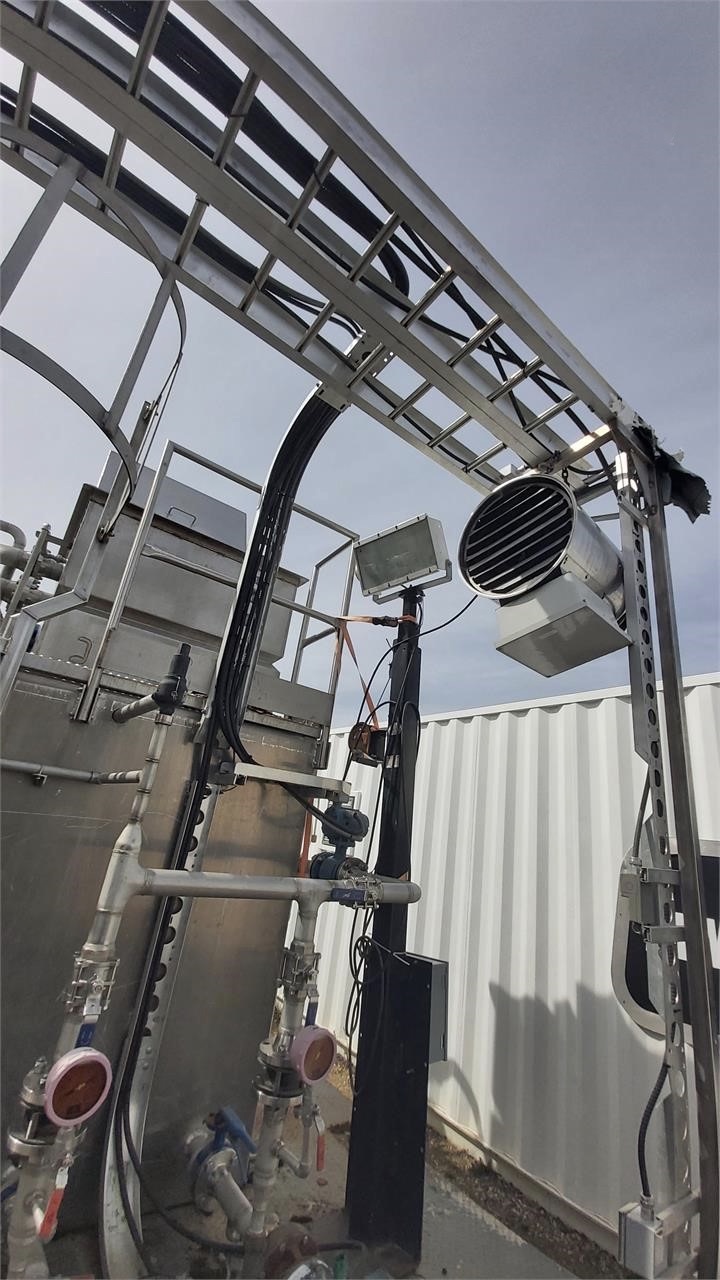

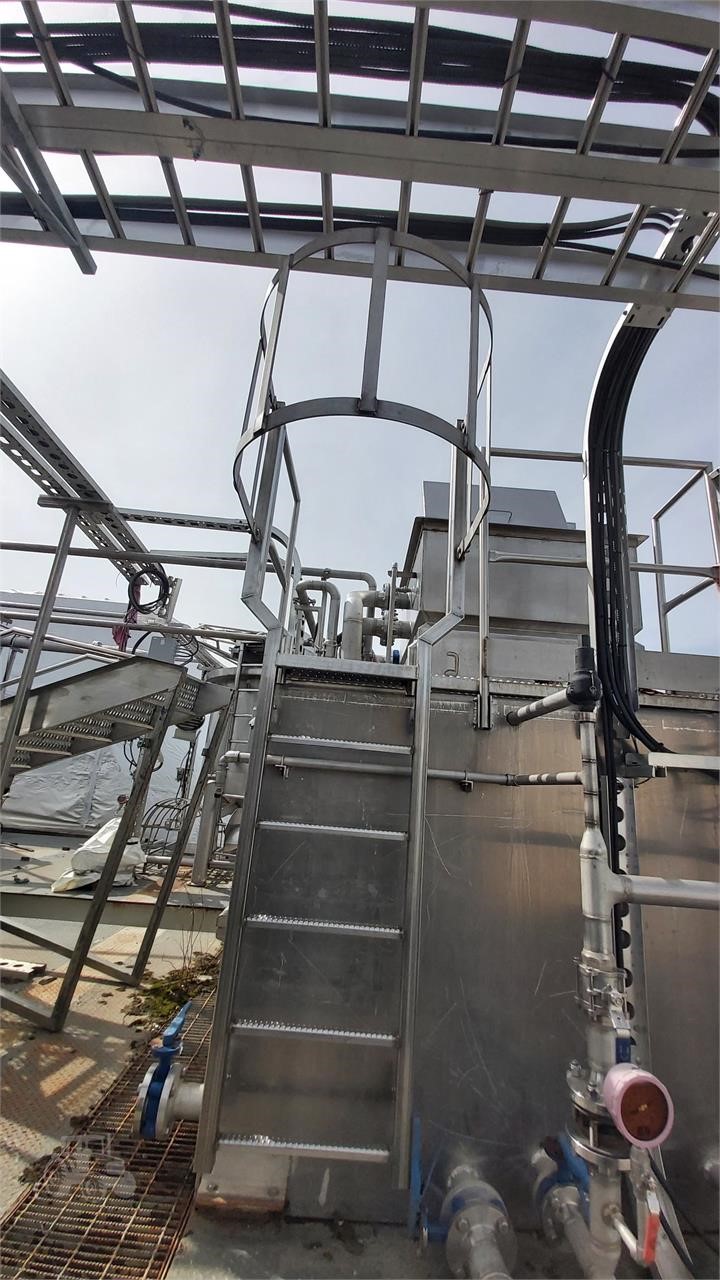

Please note that the price herein is NOT the final rental price. The photos you see are of the plant. The last 2 photos show how the plant is transported (2). If nutrient removal is required, it would take another an additional truck load.
______________________________________________

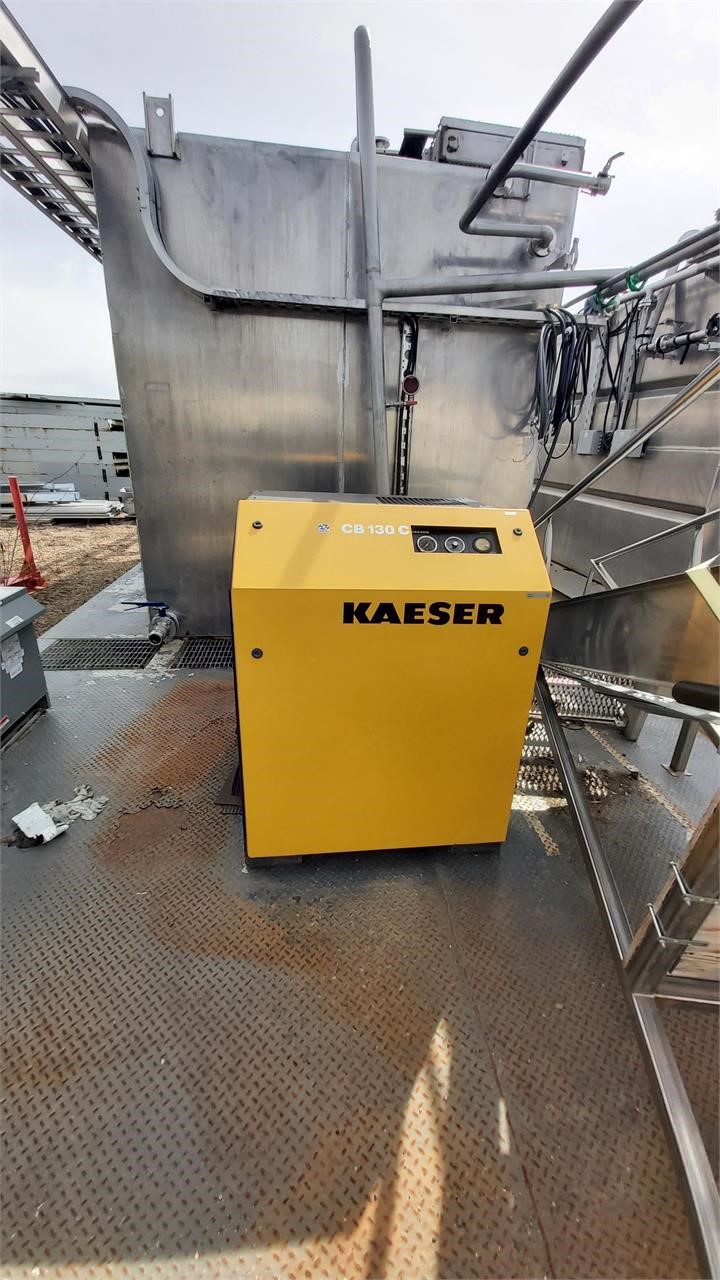

Manufacturer: KAESER

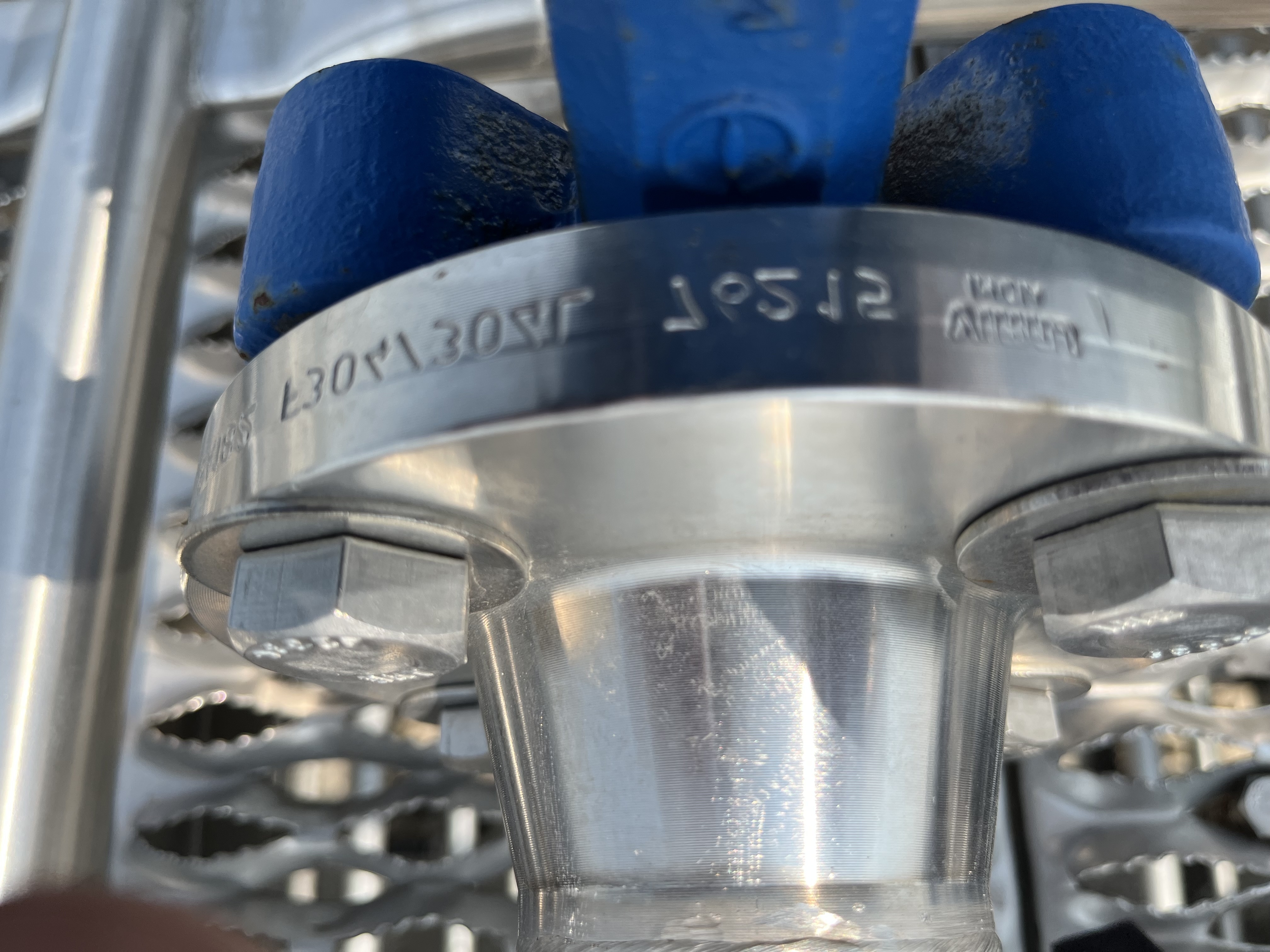

Details: Stainless steel build and piping
o Design Capacity
600 PE
Influent Feed: 155 m3/day
Design BOD5 loading; 500 mg/L or MAX 50 kg/day
Design TSS loading; 300 mg/L/day
Design Oil and Grease; 80 mg/L/day
o Treated Effluent Criteria
BOD5 ≤ 25 mg/l
TSS ≤25 mg/l
Fecal Coliform ≤200/100 m
Based on the Extended Activated Sludge setup and on an average of 30‐day composite samples. Substantial improvements and nutrient removal is achieved via conversion to IFAS.
Power:
- 600v / 3 phase / 250 amp
- 600v to 208v transformer
- power can be adapted to your needs

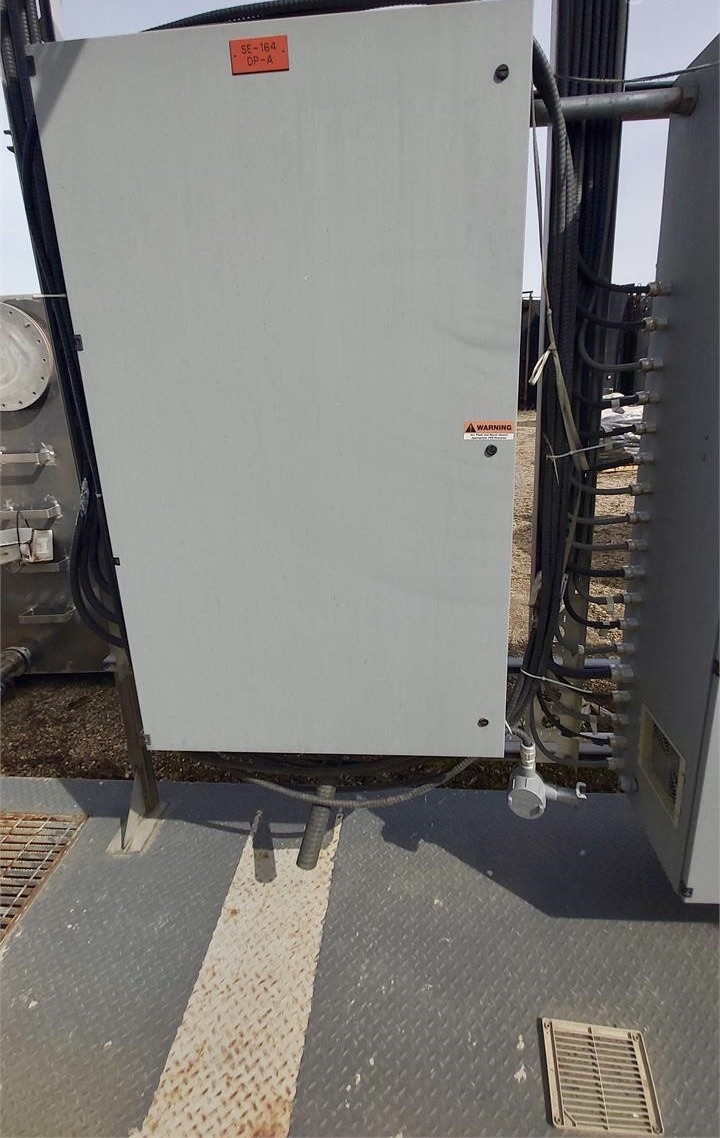

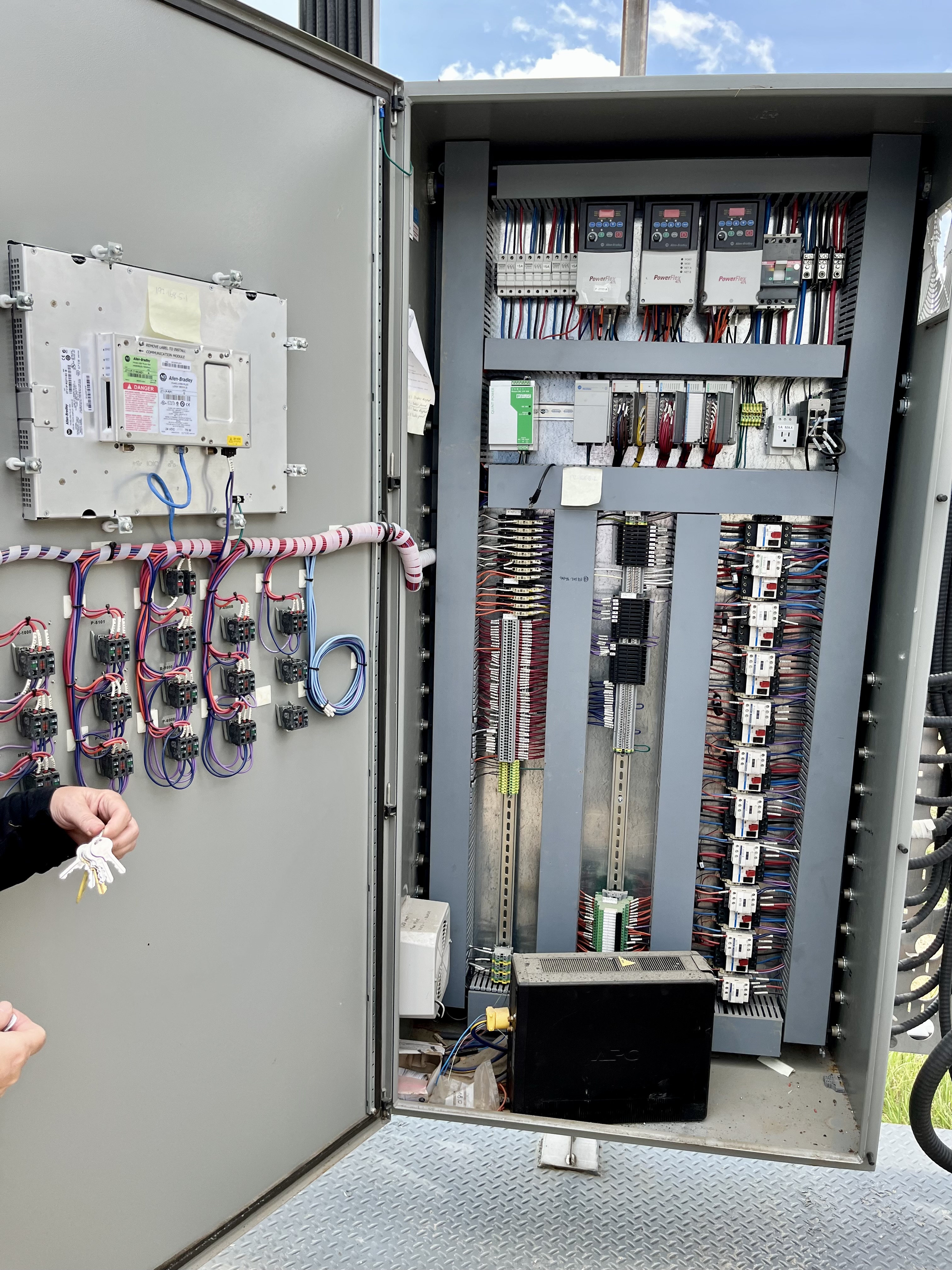

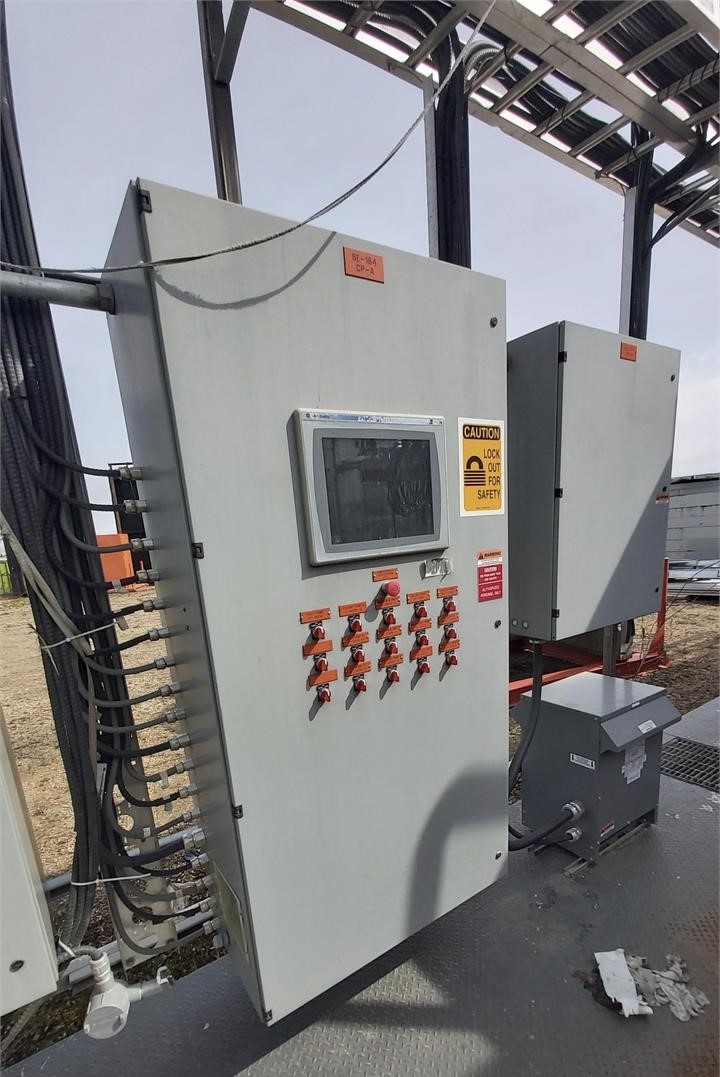

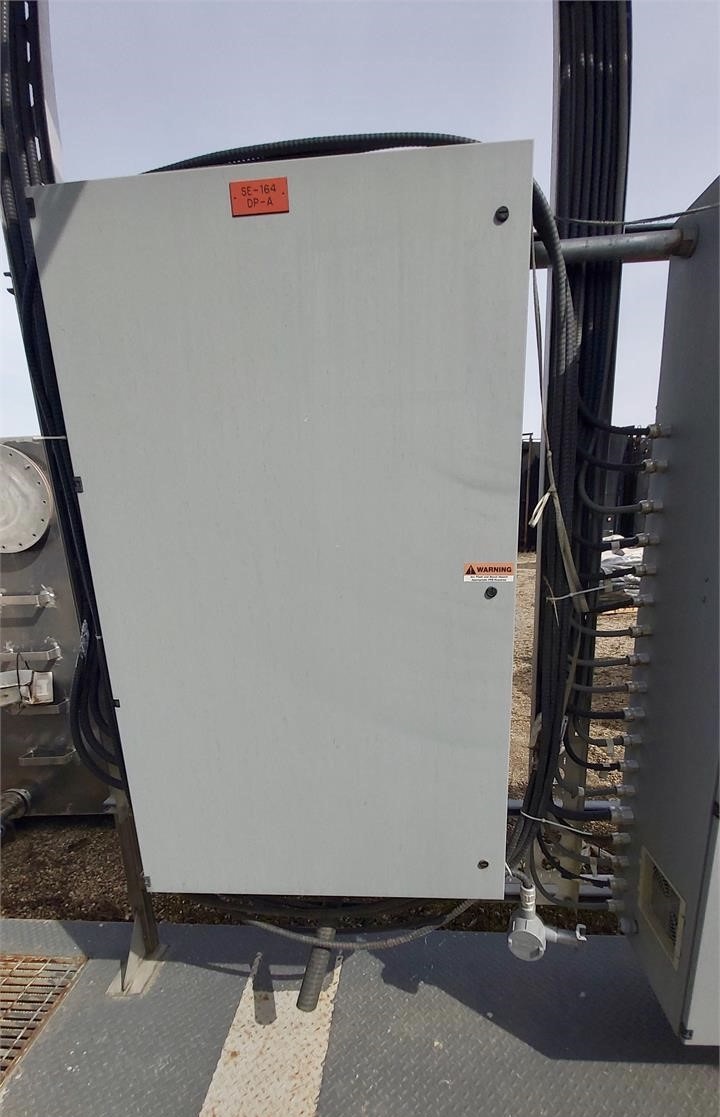

MCP:
- Mechanical hand / off / auto switches
- Allen Bradley HMI
System:

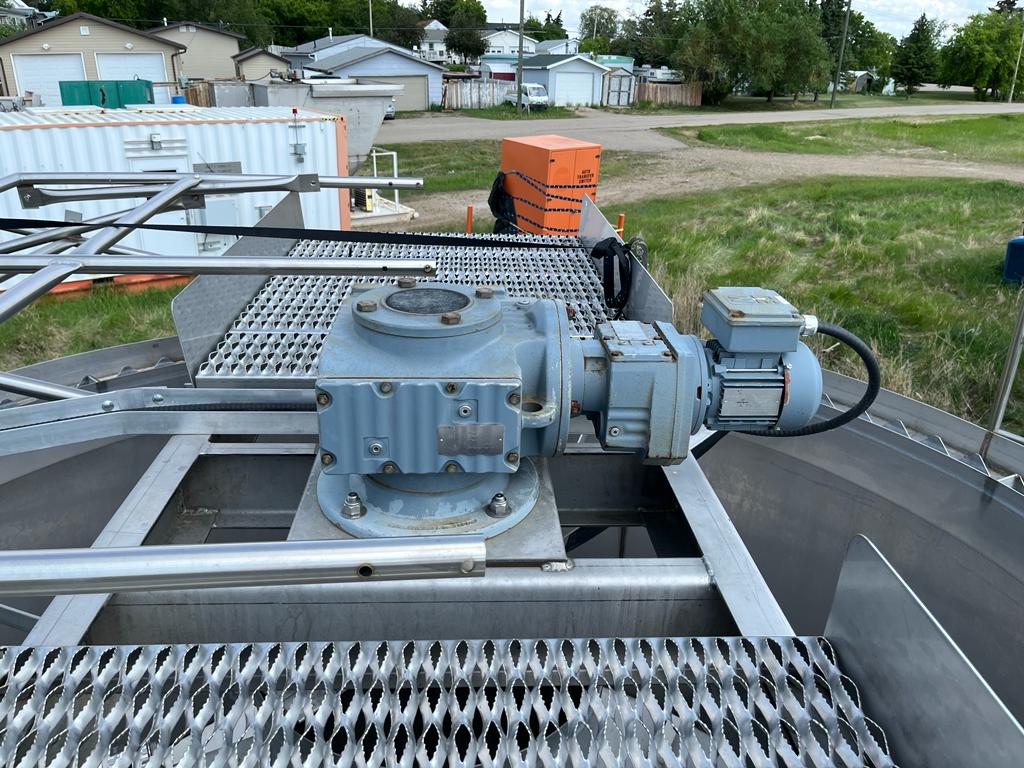

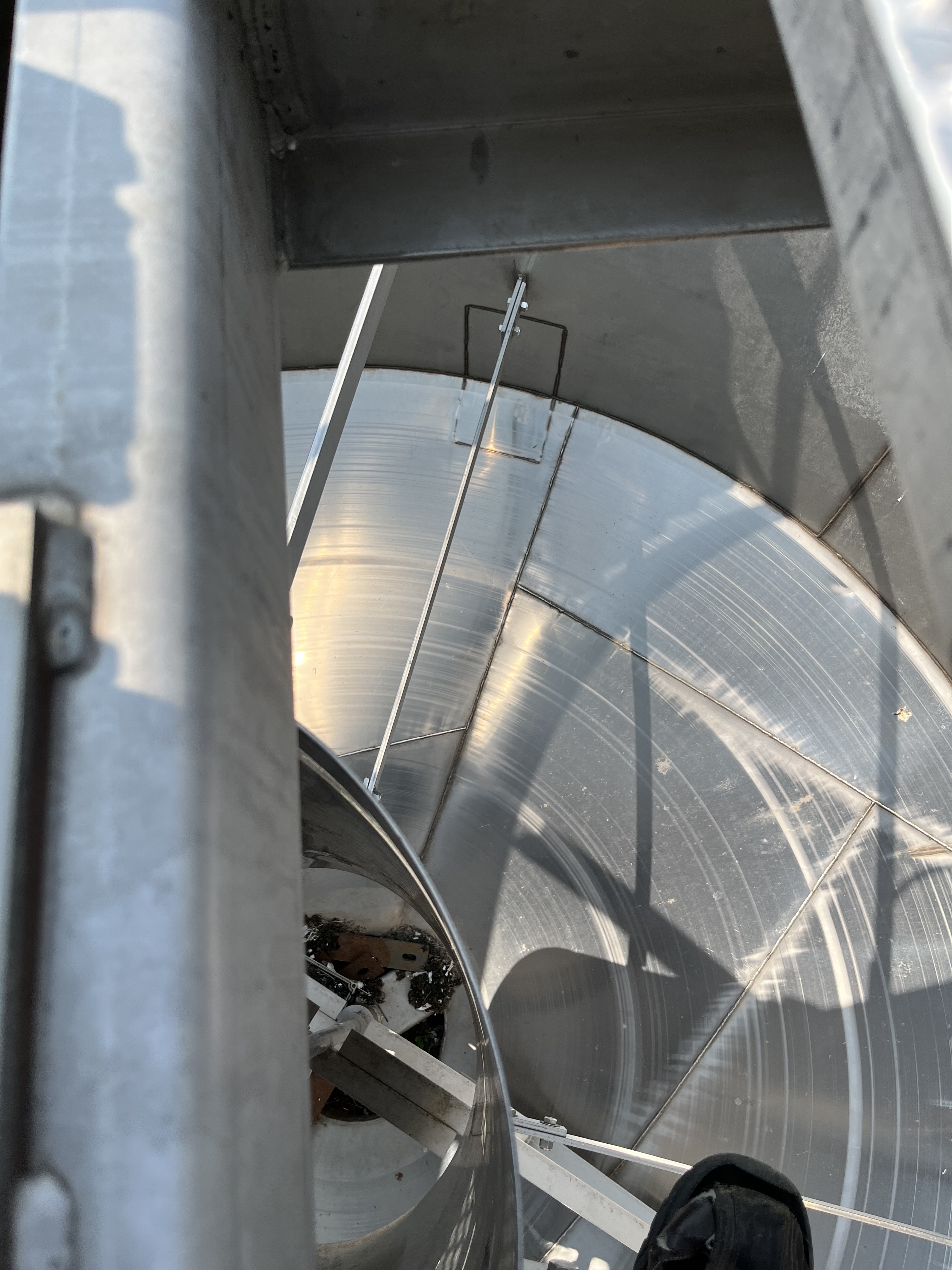

- Drum Screening
- EQ
- Clarification

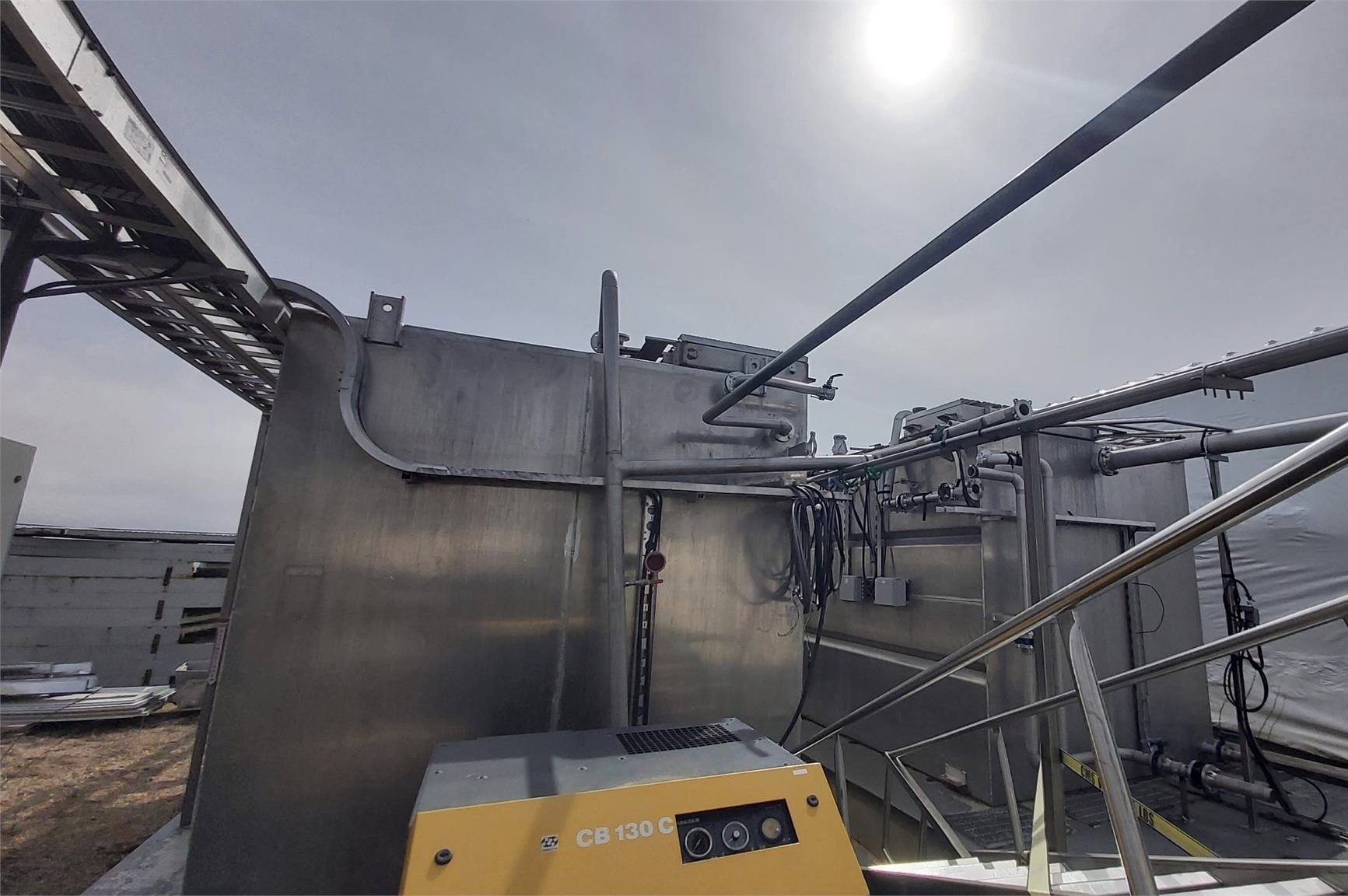

- Extended Aeration (includes redundant air blower)
- Digester tank
- Rotary drum micro strainer for final effluent polishing
- Dosing Tank
- Hallett 30 UV system
- Skidded unit (2 skids)
- Skid / unit dimensions – 70’ x 15.5’ x 14’
This extended aeration package sewage treatment plant is capable of providing effluent with BOD5 and TSS well below typical regulatory requirements.

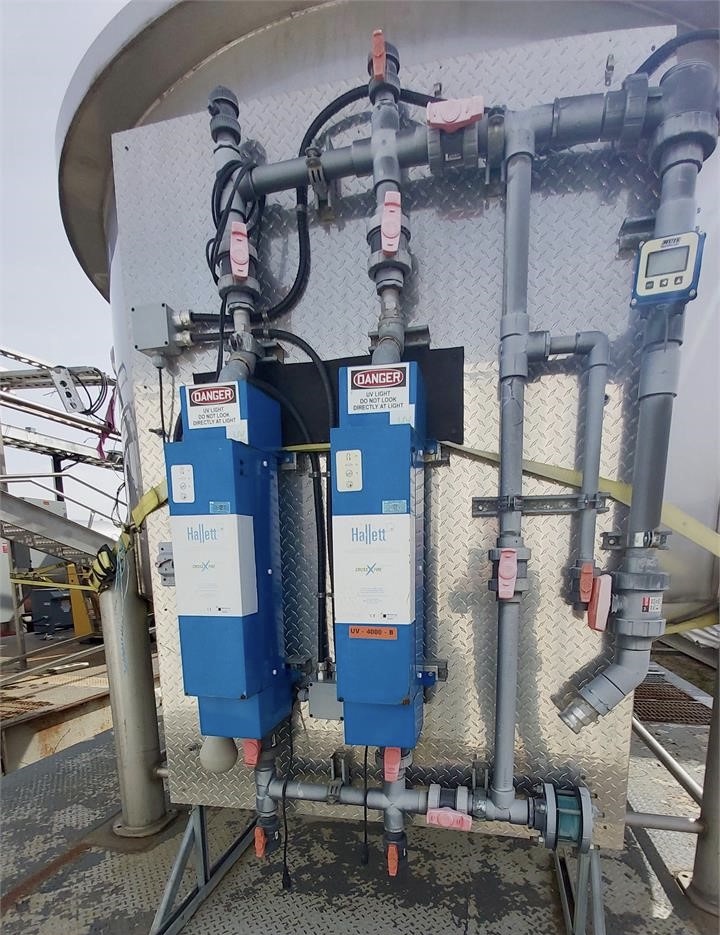

Hallett 30 UV system- The Hallett 30 1” drinking water system is NSF/ANSI Standard 55 Class A certified. For the Hallett units, the EPA Establishment number is 075213-CAN-001
The Hallett outperforms conventional systems by delivering highly effective UV dosage rates for the inactivation of pathogens, including:
-Viruses
-Bacteria
-Cryptosporidium
-Giardia
-Legionella
-E. coli
-Total coliforms
-Viruses
-Bacteria
-Cryptosporidium
-Giardia
-Legionella
-E. coli
-Total coliforms
Typical applications:
- Plant bypass
- Temporary or long-term wastewater treatment requirements
- Remote work camps
- Pilot plant operations on various water streams
- System expansions
- Disaster mitigation
- Temporary bridge to a permanent solution
- Treatment for seasonal peaks or scheduled maintenance
Conversions & Add ons(Either or)
-Integrated Fixed Film Activated Sludge (IFAS) module for process intensification and BNR
-MBBR
-DAF Integration for industrial Wastewater pretreatment
-Belt Press or Filter Press for waste sludge treatment
-Housing
-Extra water holding tanks
Our plants are located in Alberta Canada and are available for rental to Canada, United States, Central and South America.
